John Day Downstream Gate & Sheave Replacement

Owner: US Army Corps of Engineers - Portland District

Rufus, OR
|
October 2009 - March 2011
« Previous ProjectNext Project »Back to Projects

Project Details

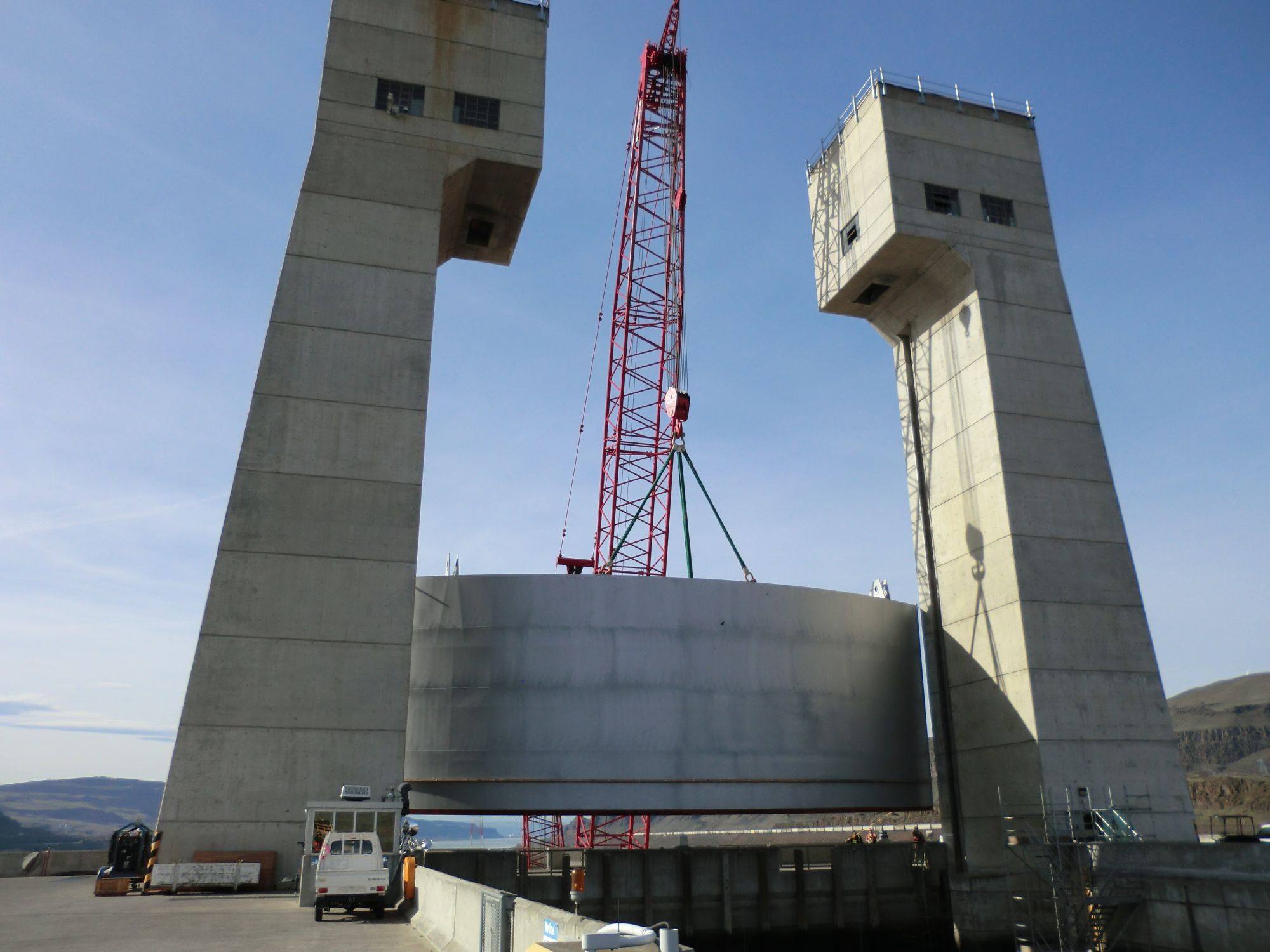

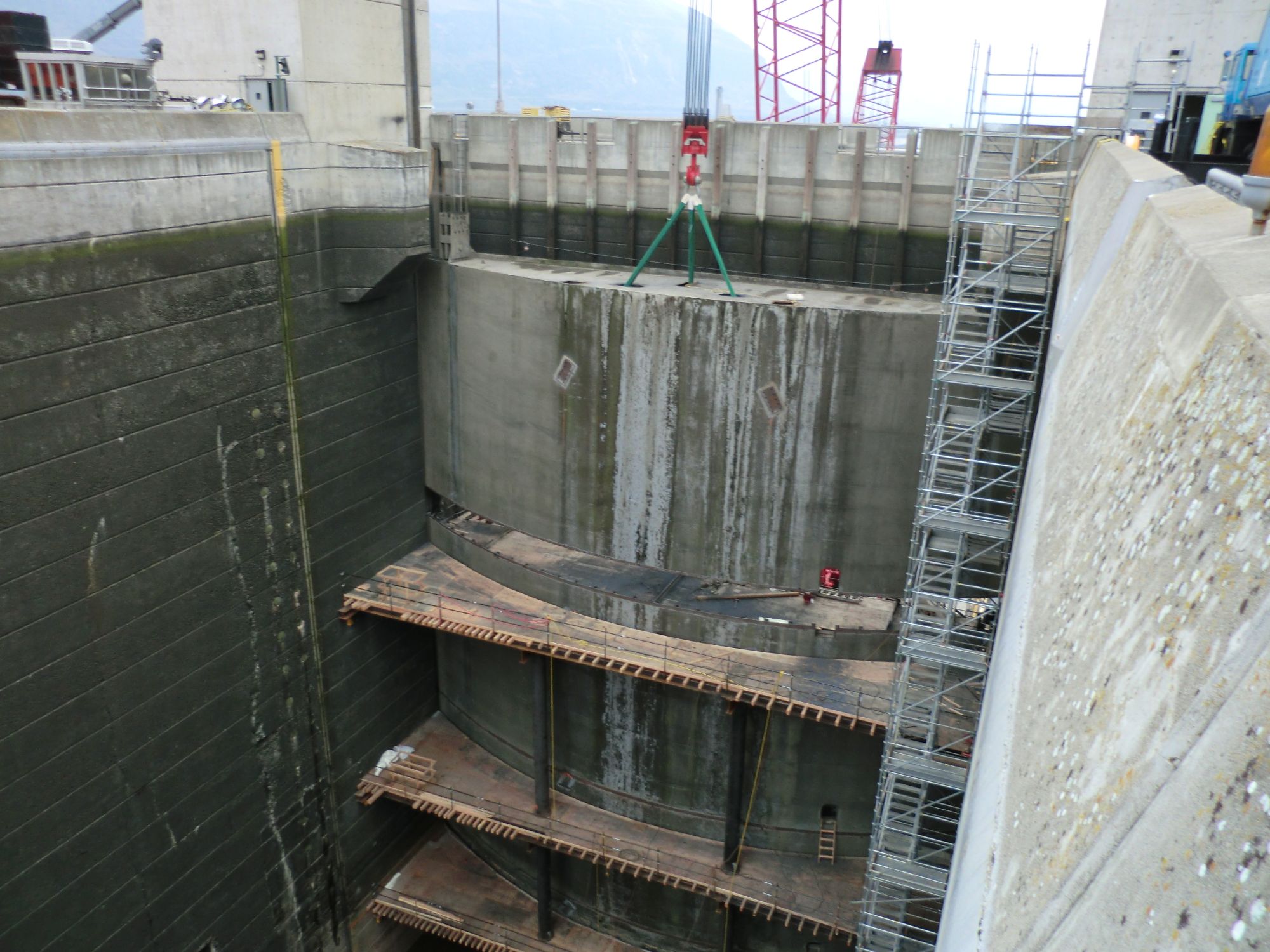

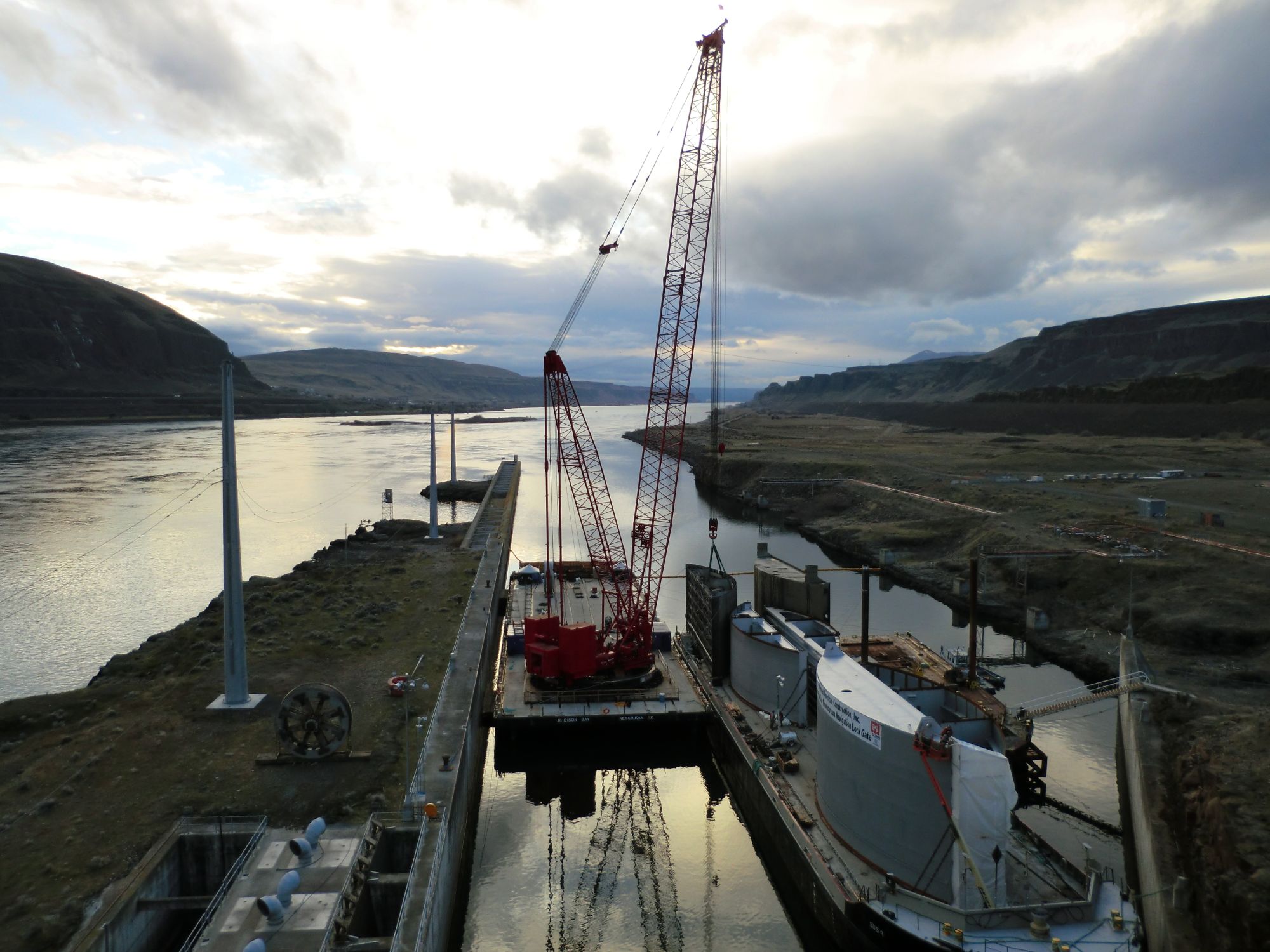

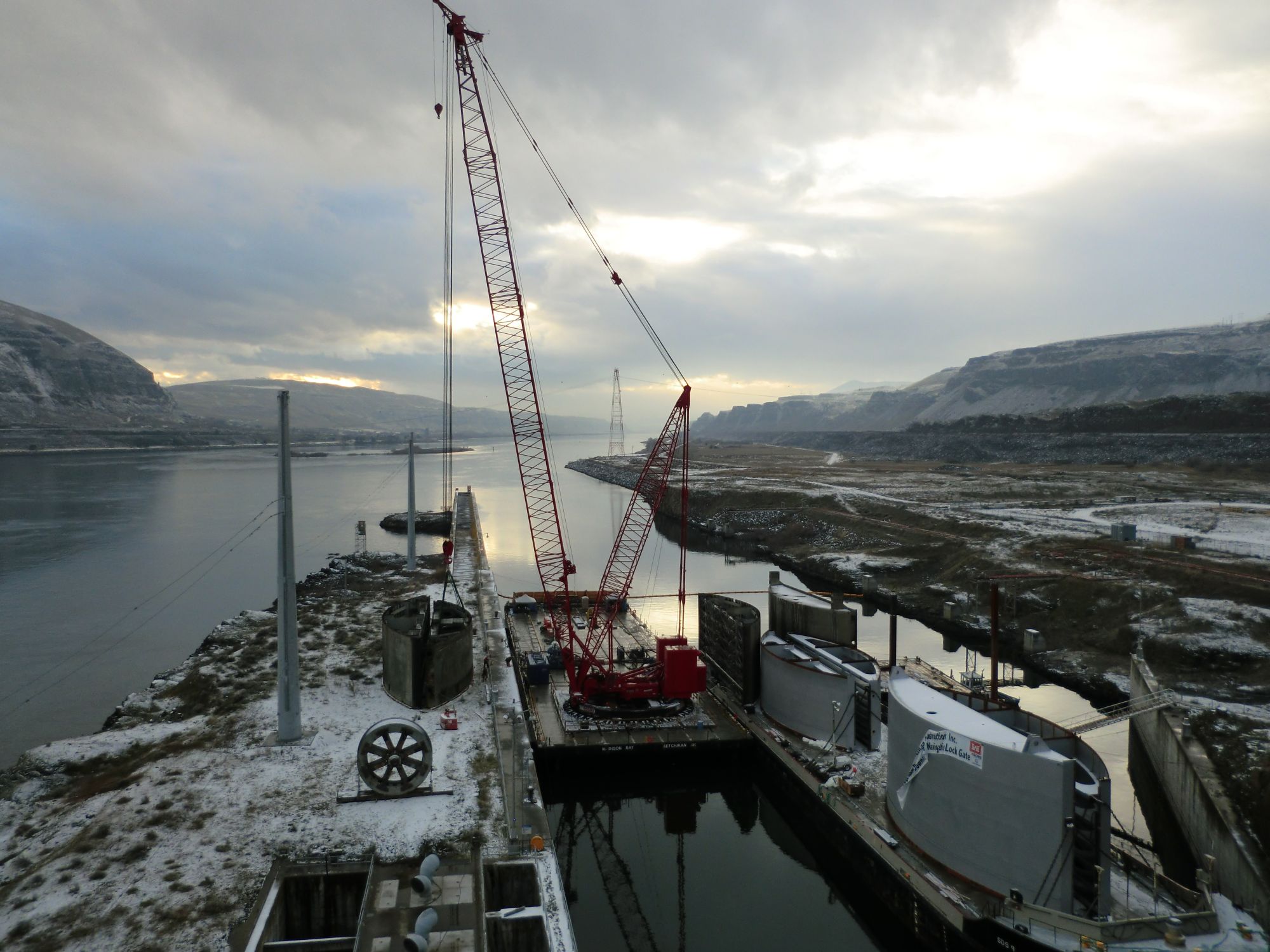

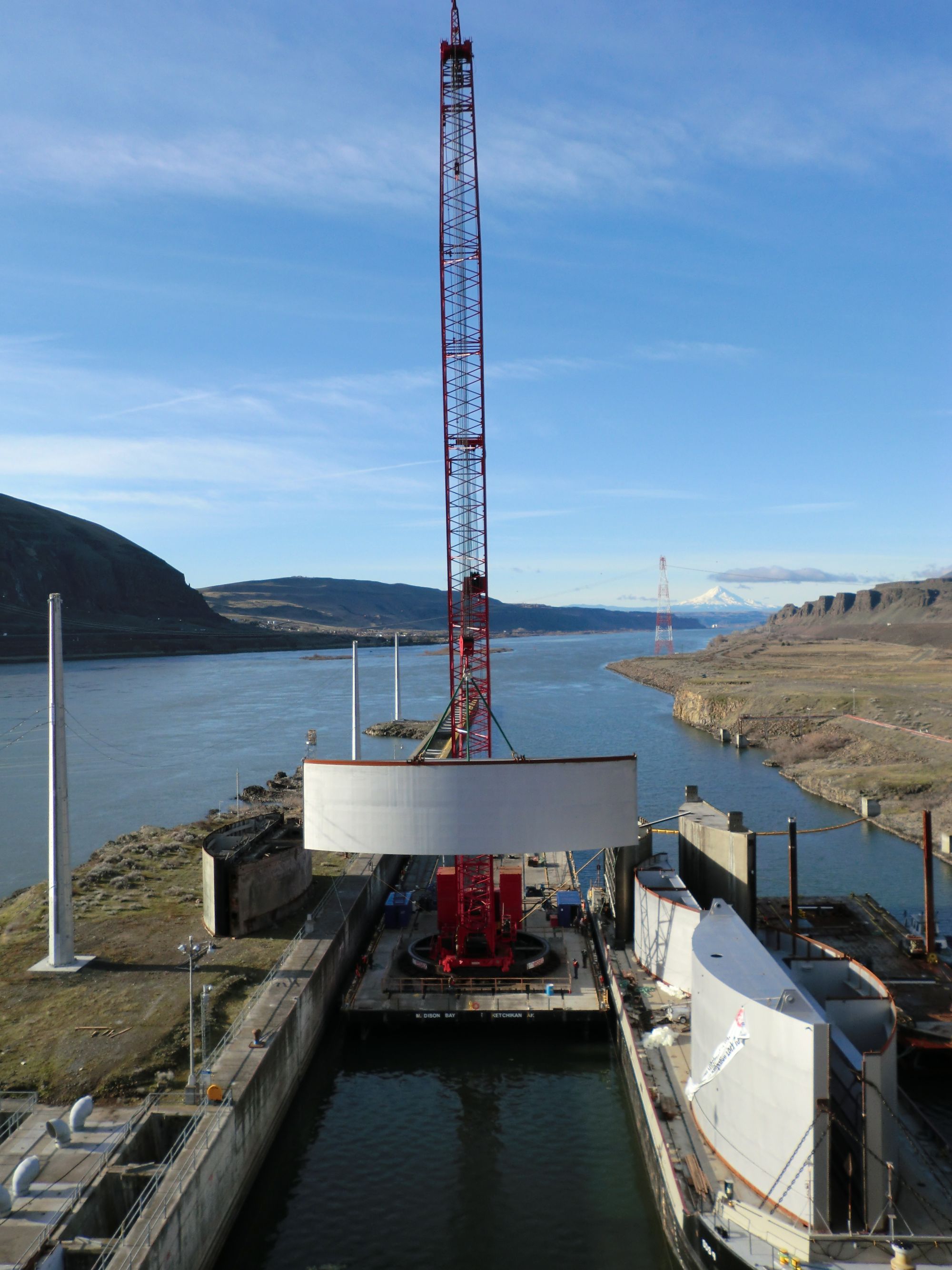

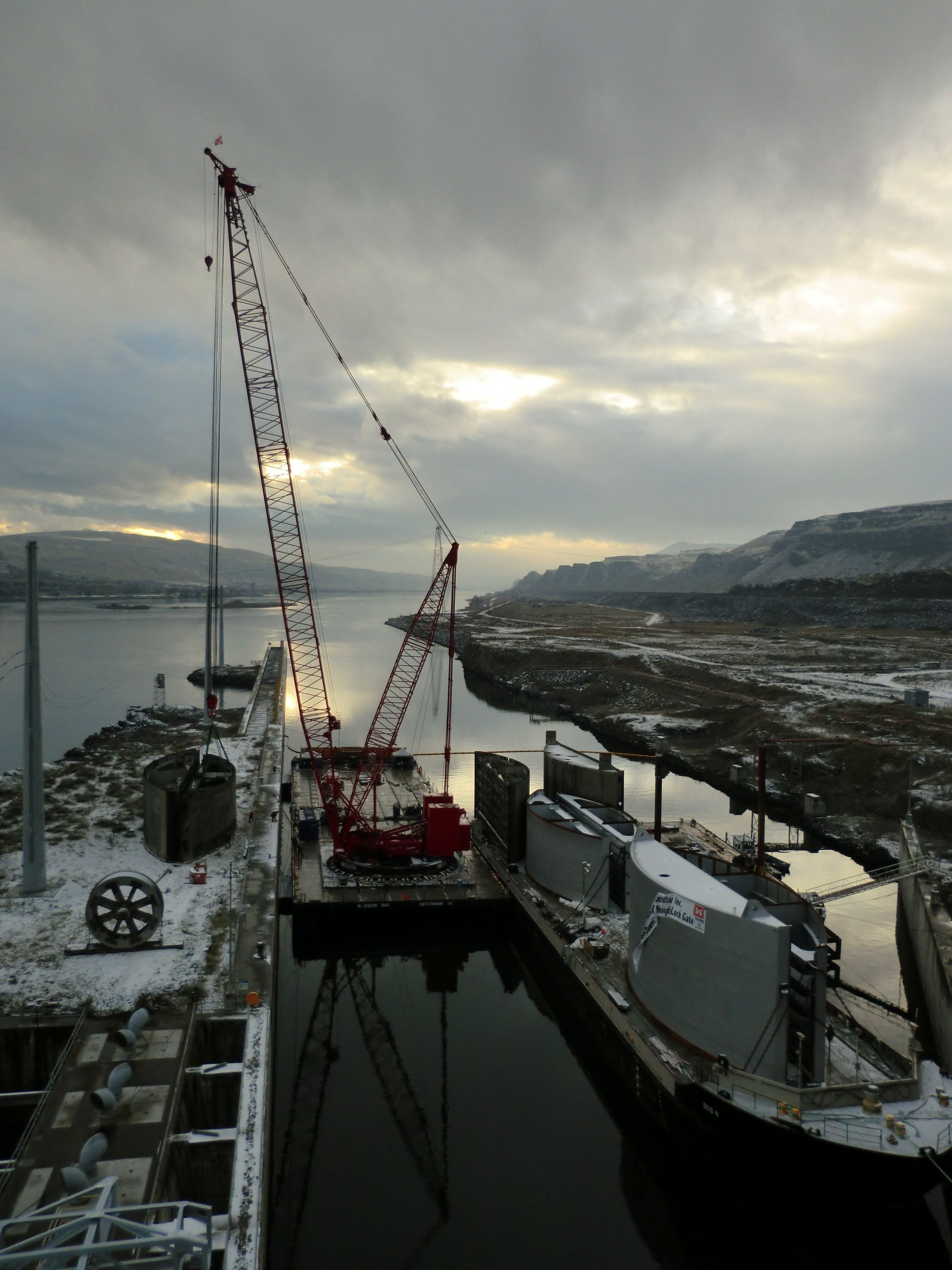

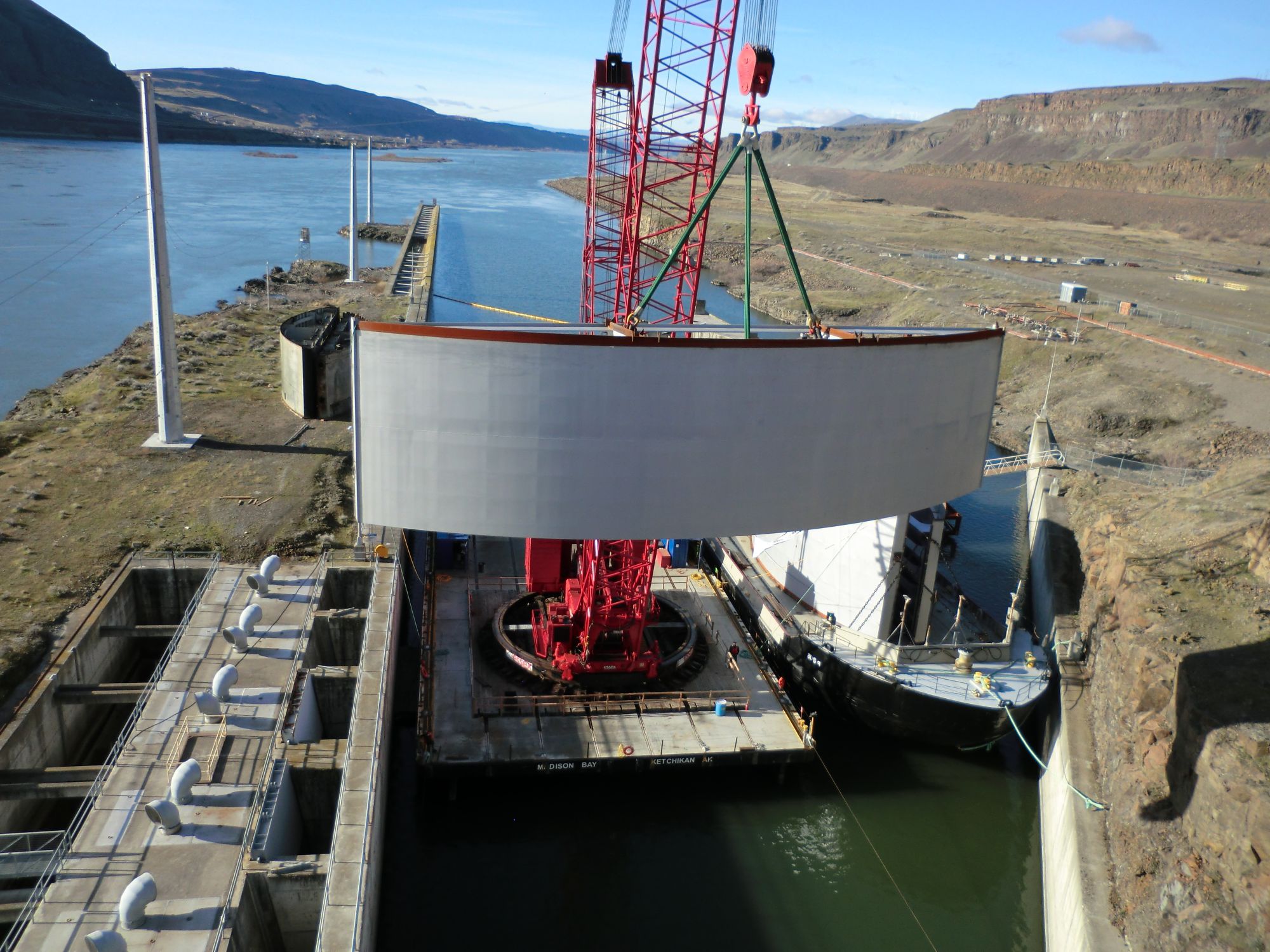

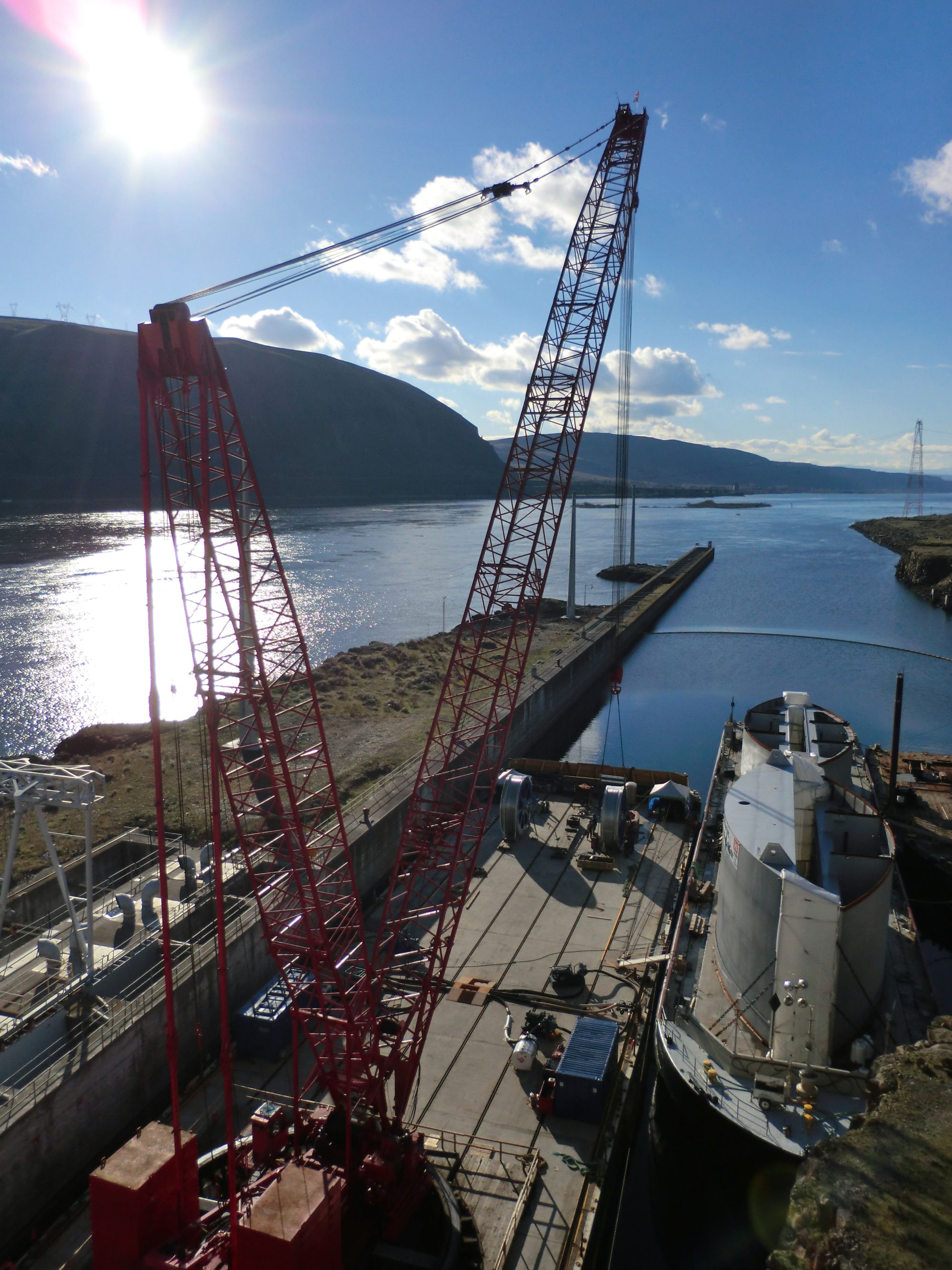

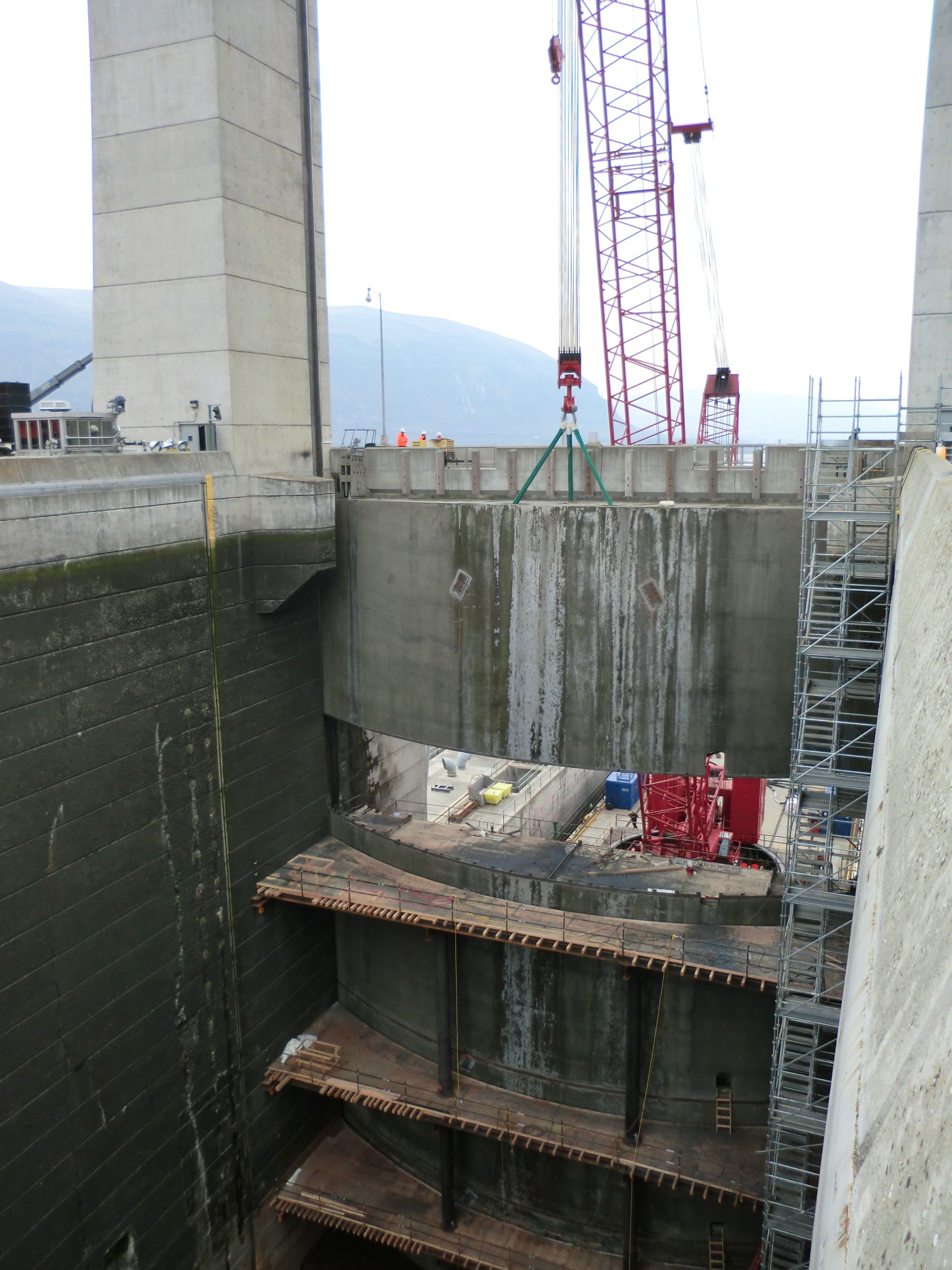

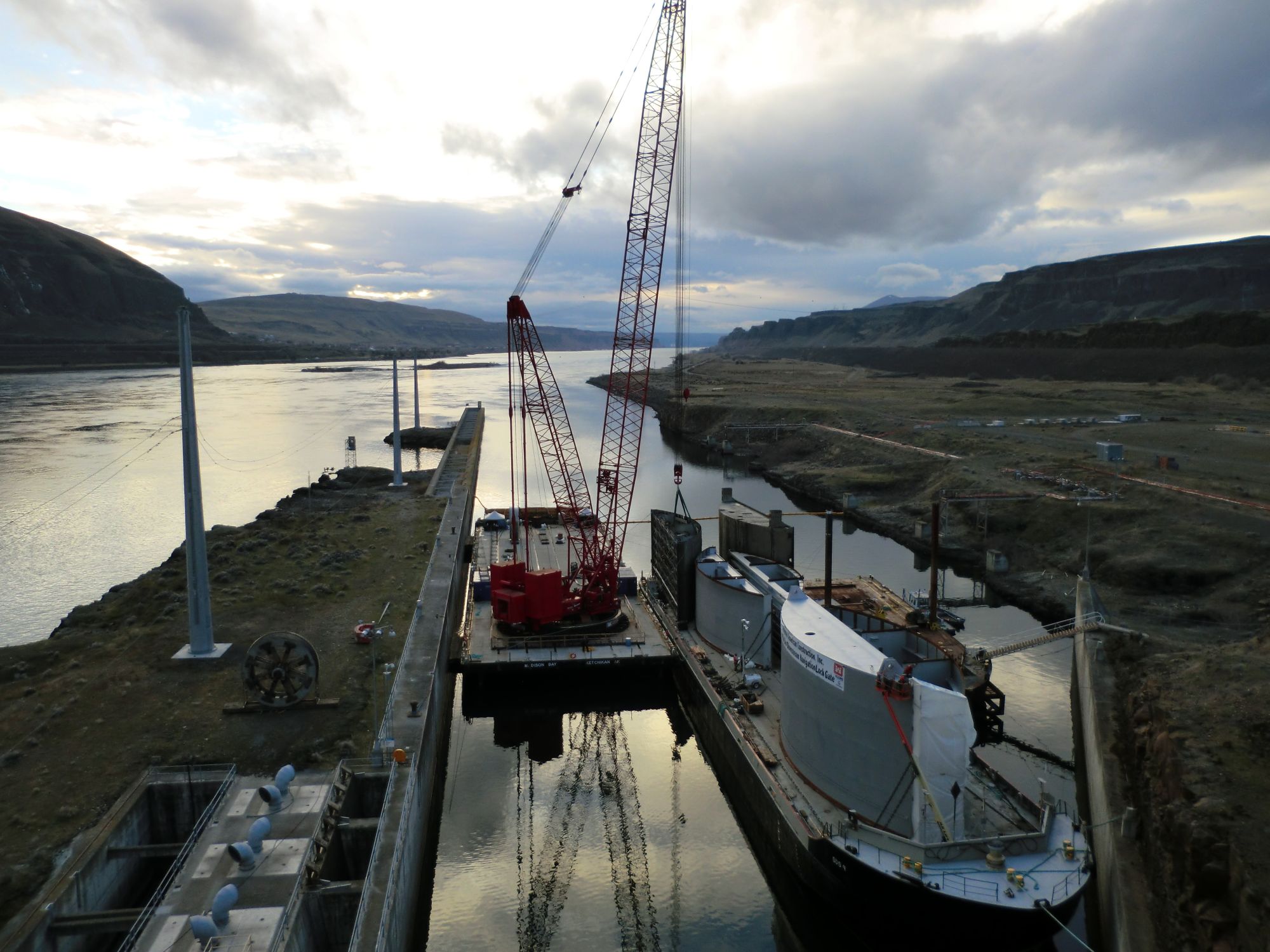

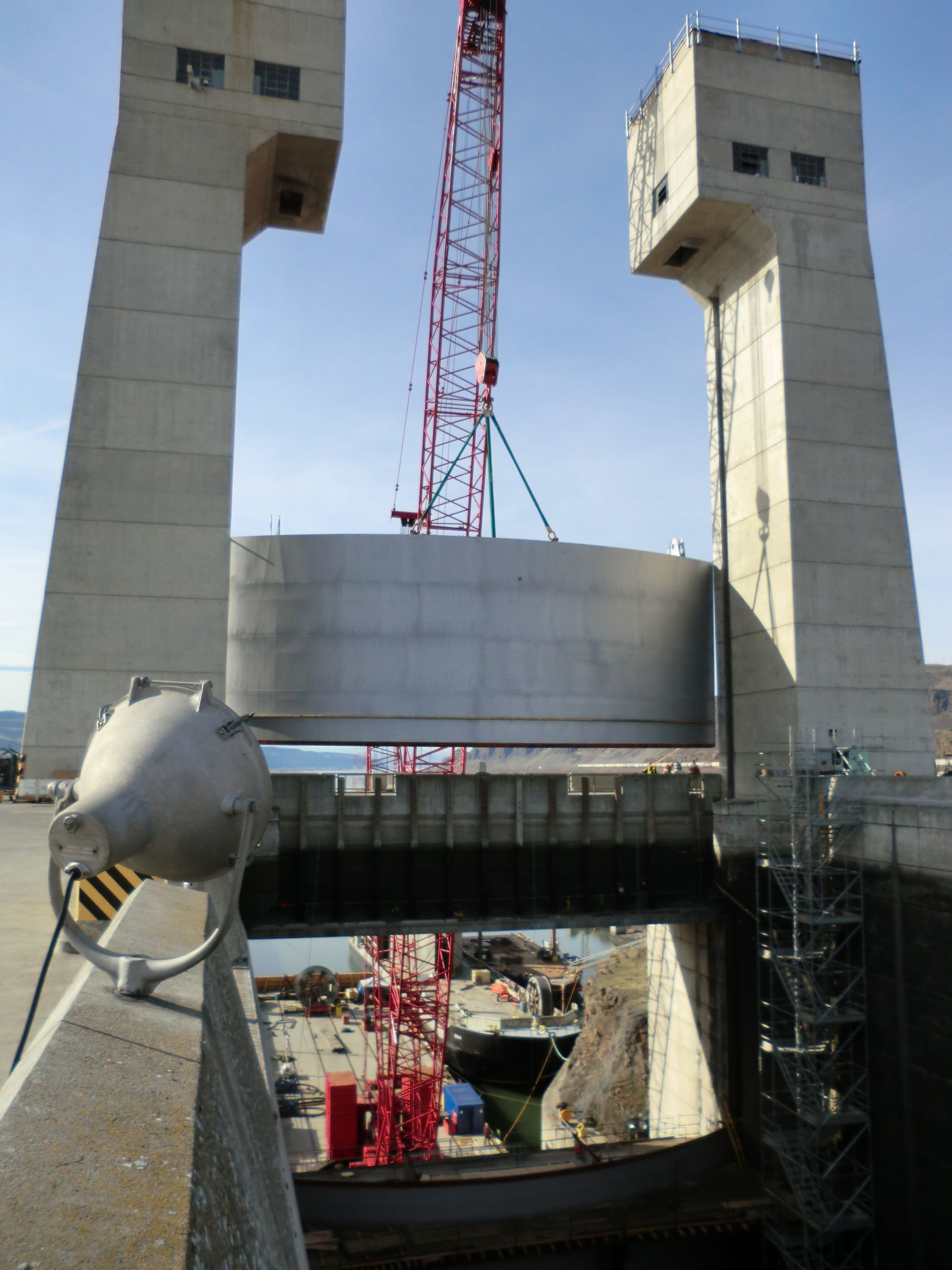

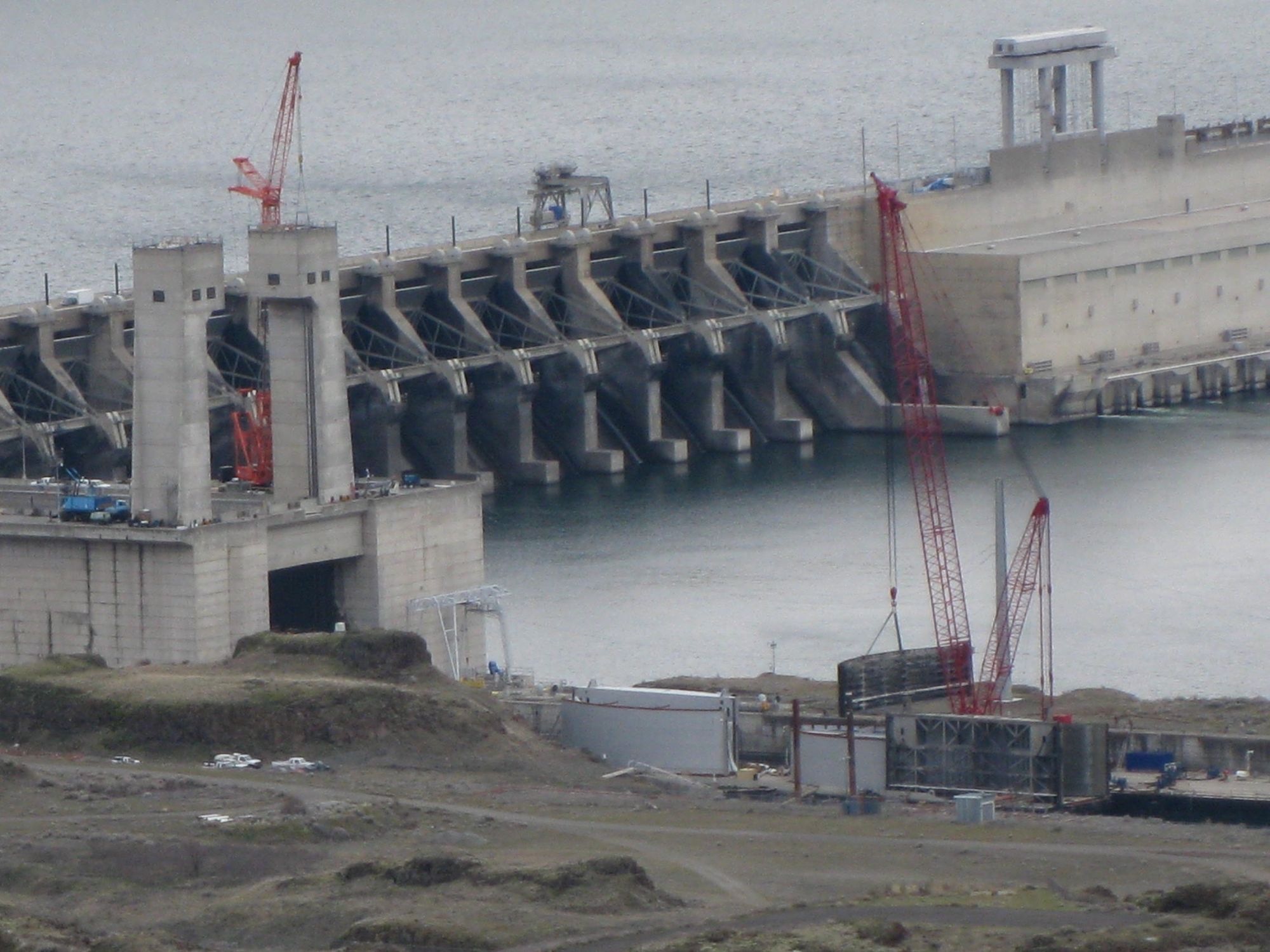

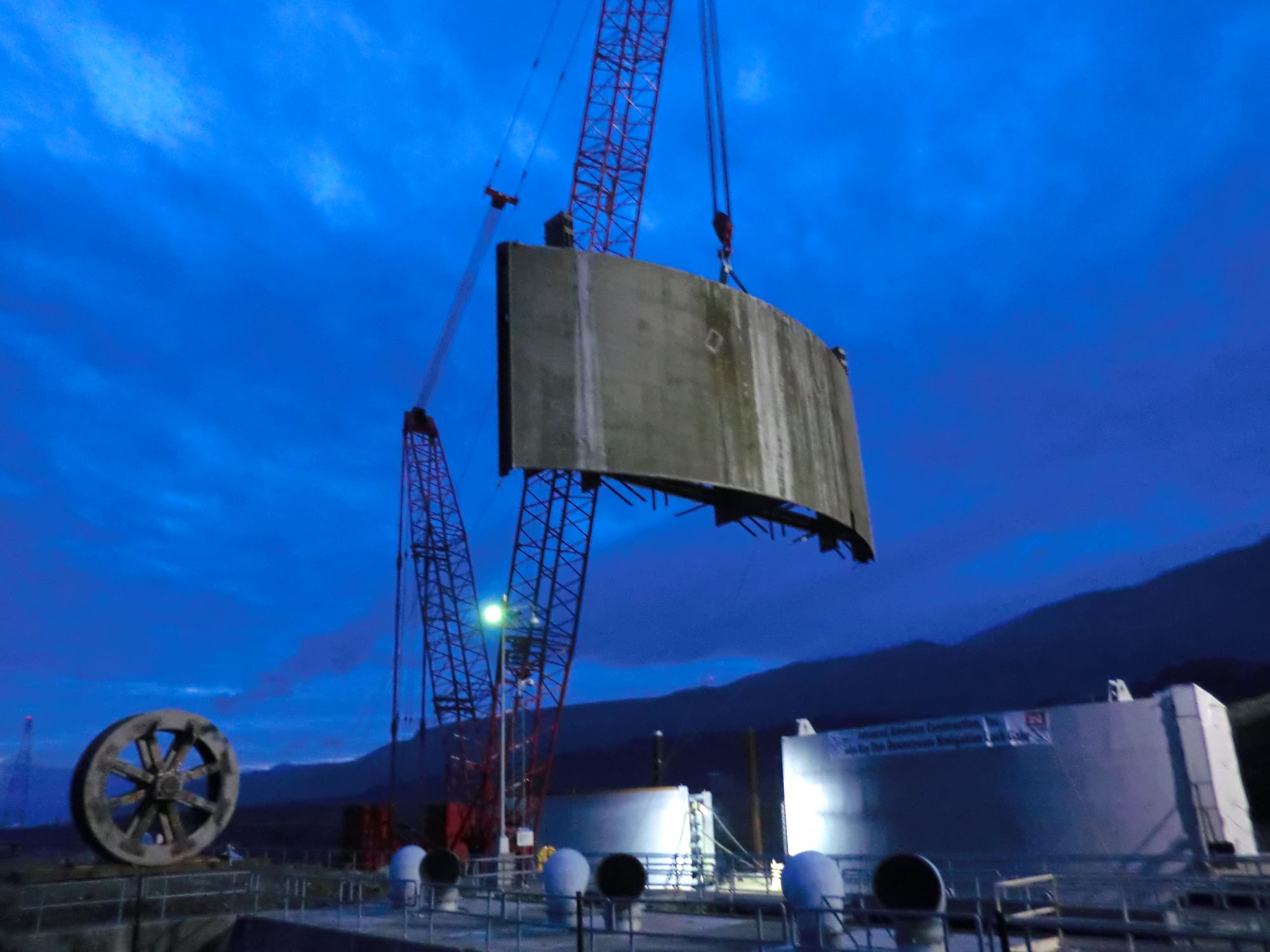

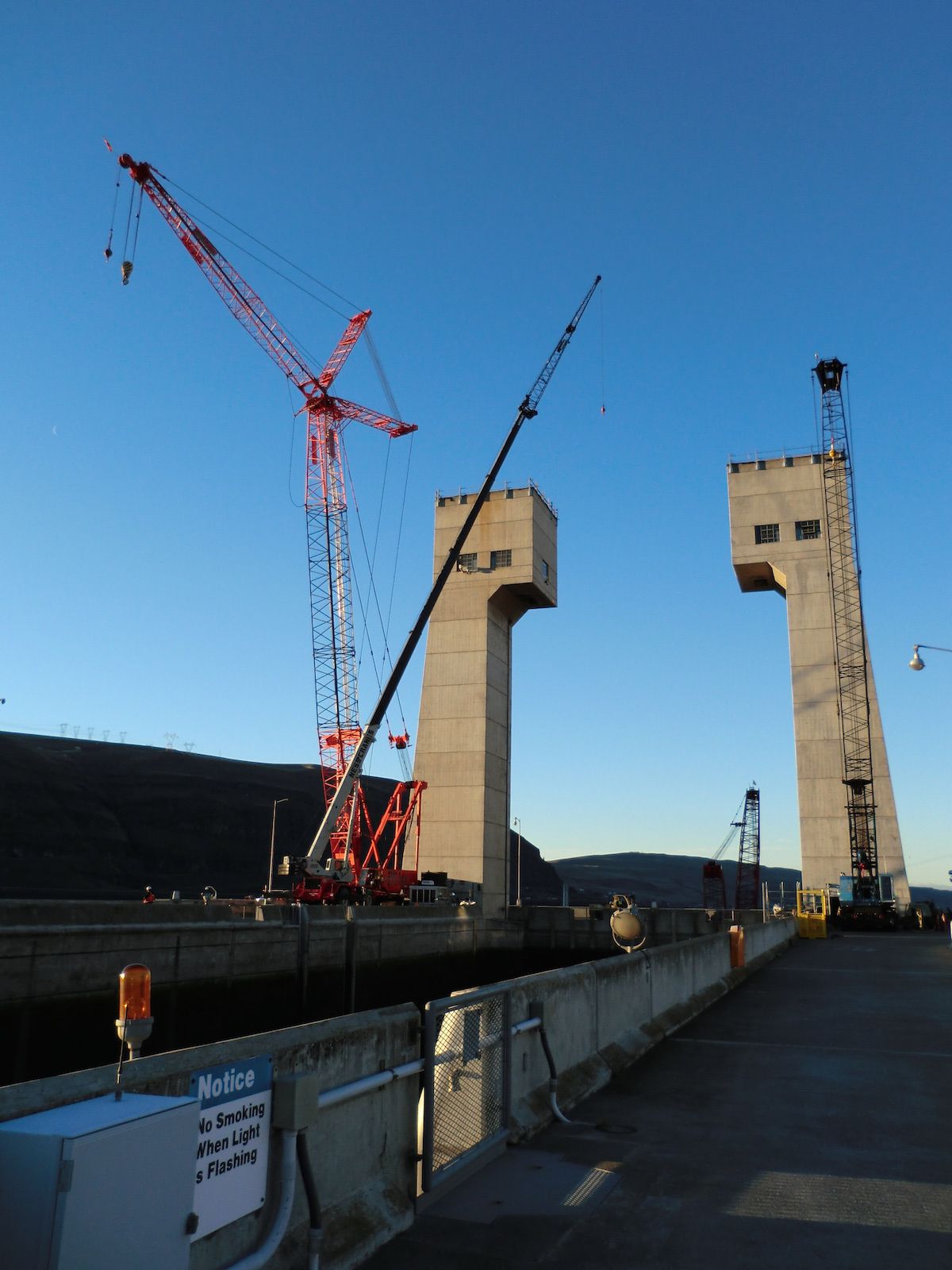

The Army Corps of Engineers (Portland District) issued notice to proceed to Advanced American Construction, Inc. (AAC) on October 8, 2009 for the Downstream Gate and Friction Sheave Replacement at the John Day Dam navigational lock.  John Day Dam is located on the Columbia River near Rufus, Oregon, 2 hours east of Portland. The weight of the downstream gate was in excess of 2 million pounds. AAC removed and replaced the downsteam gate in four sections each, using a 660 ton barge mounted crane. Once loaded, the derrick barge was transported upriver to the John Day Dam to begin work.  Replacement of the downstream gate required a 14 week navigational lock closure that began December 10, 2010. Due to the necessity of the river being closed in order to complete this work, AAC crews worked double shifts six and seven days per week.

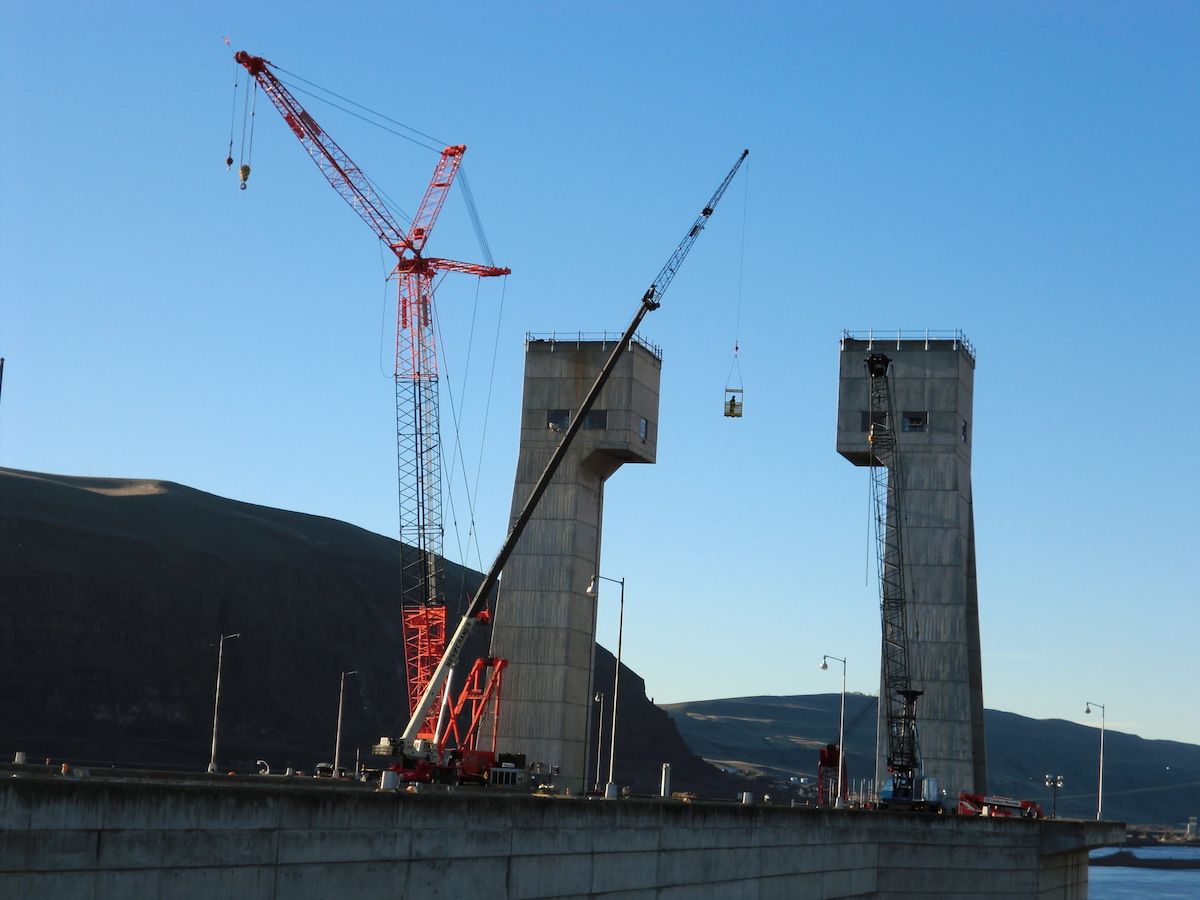

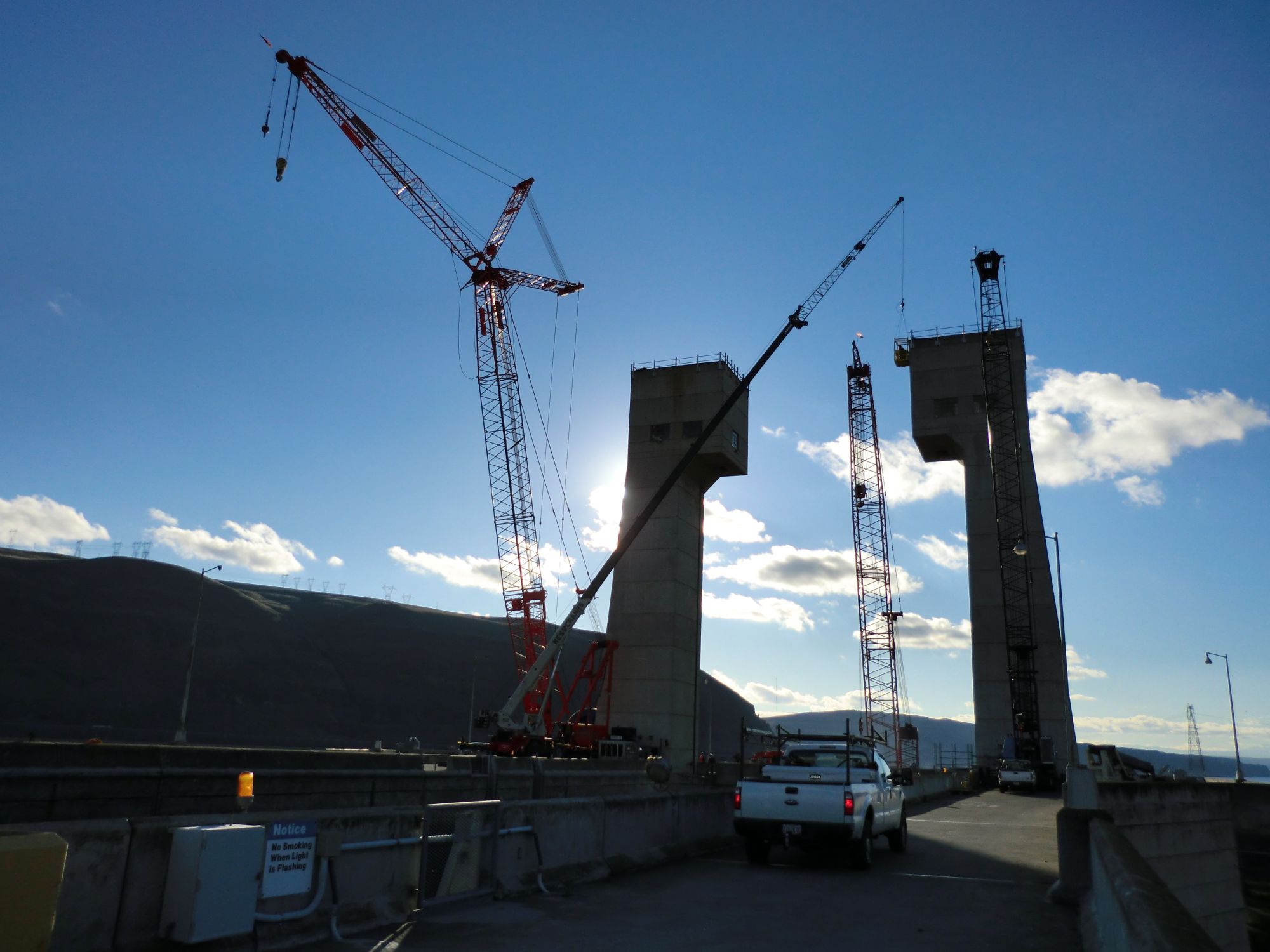

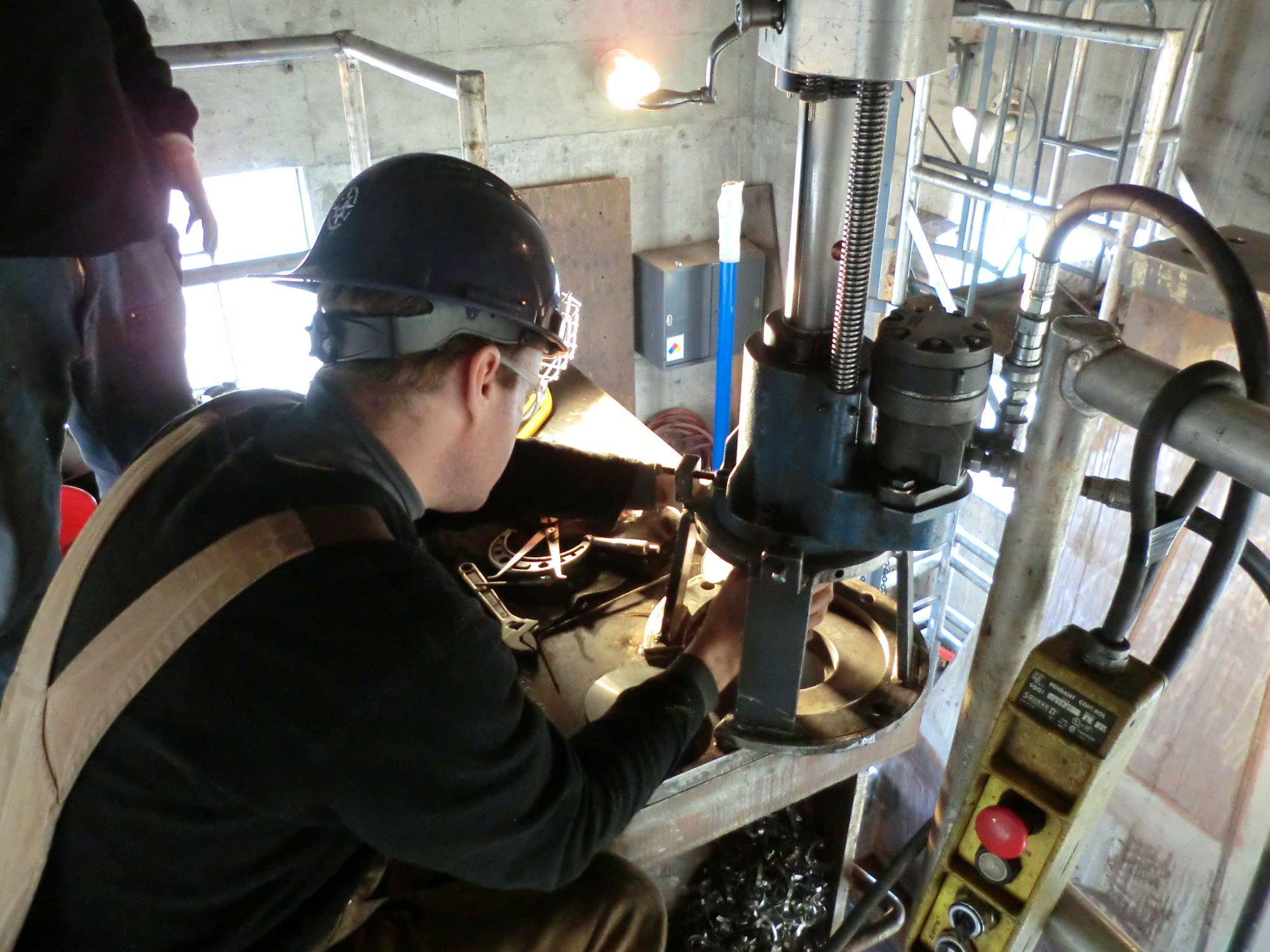

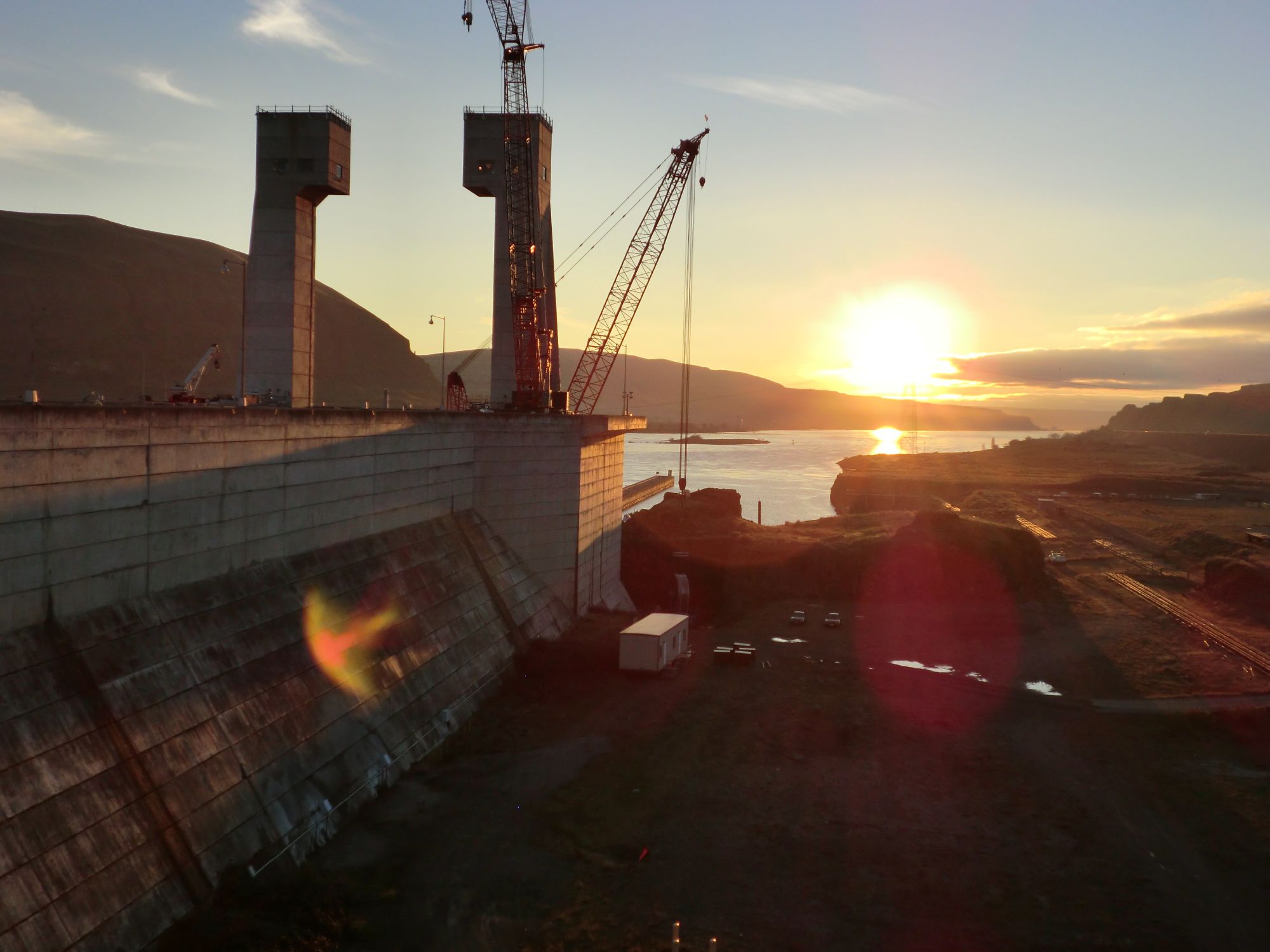

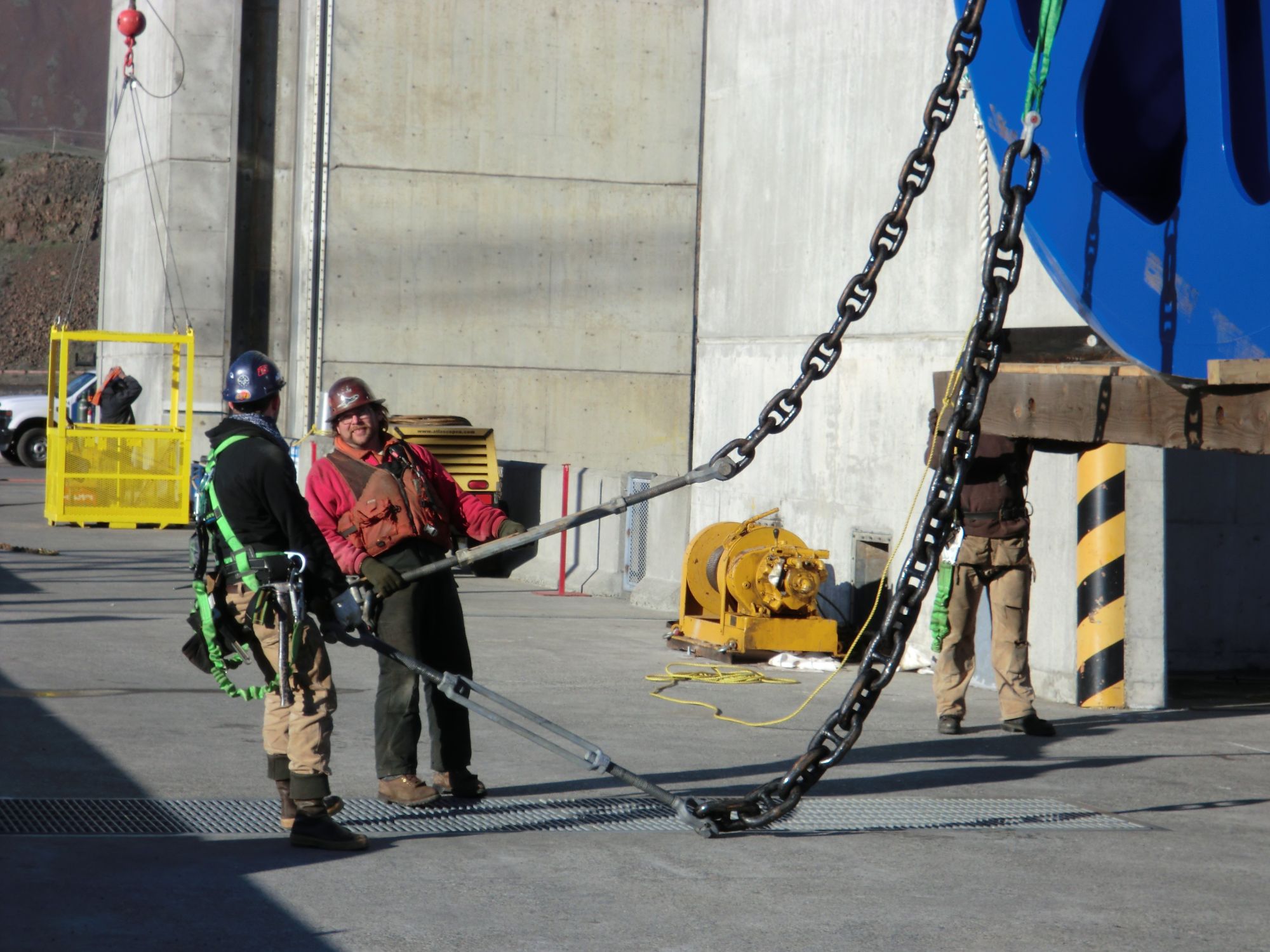

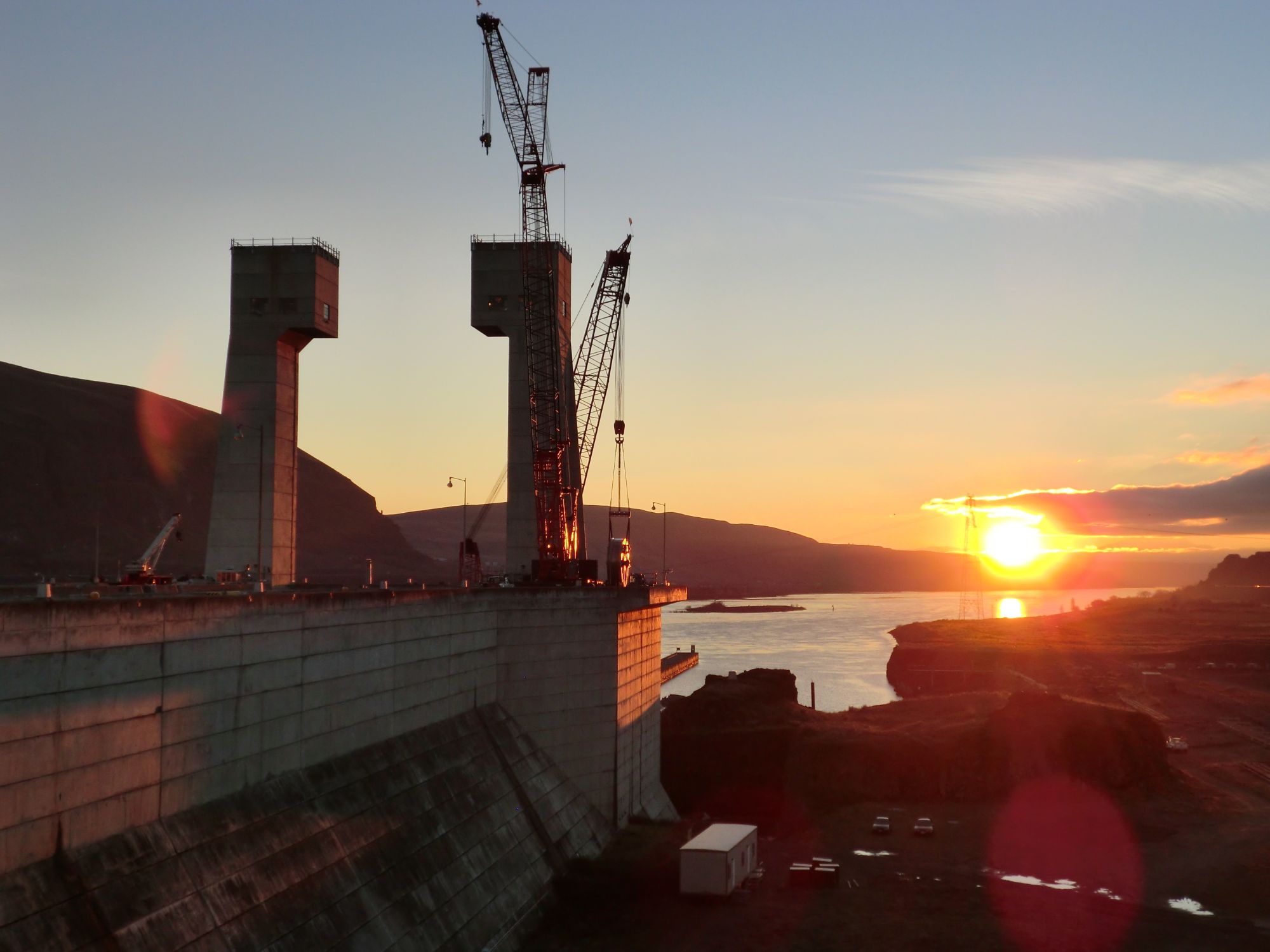

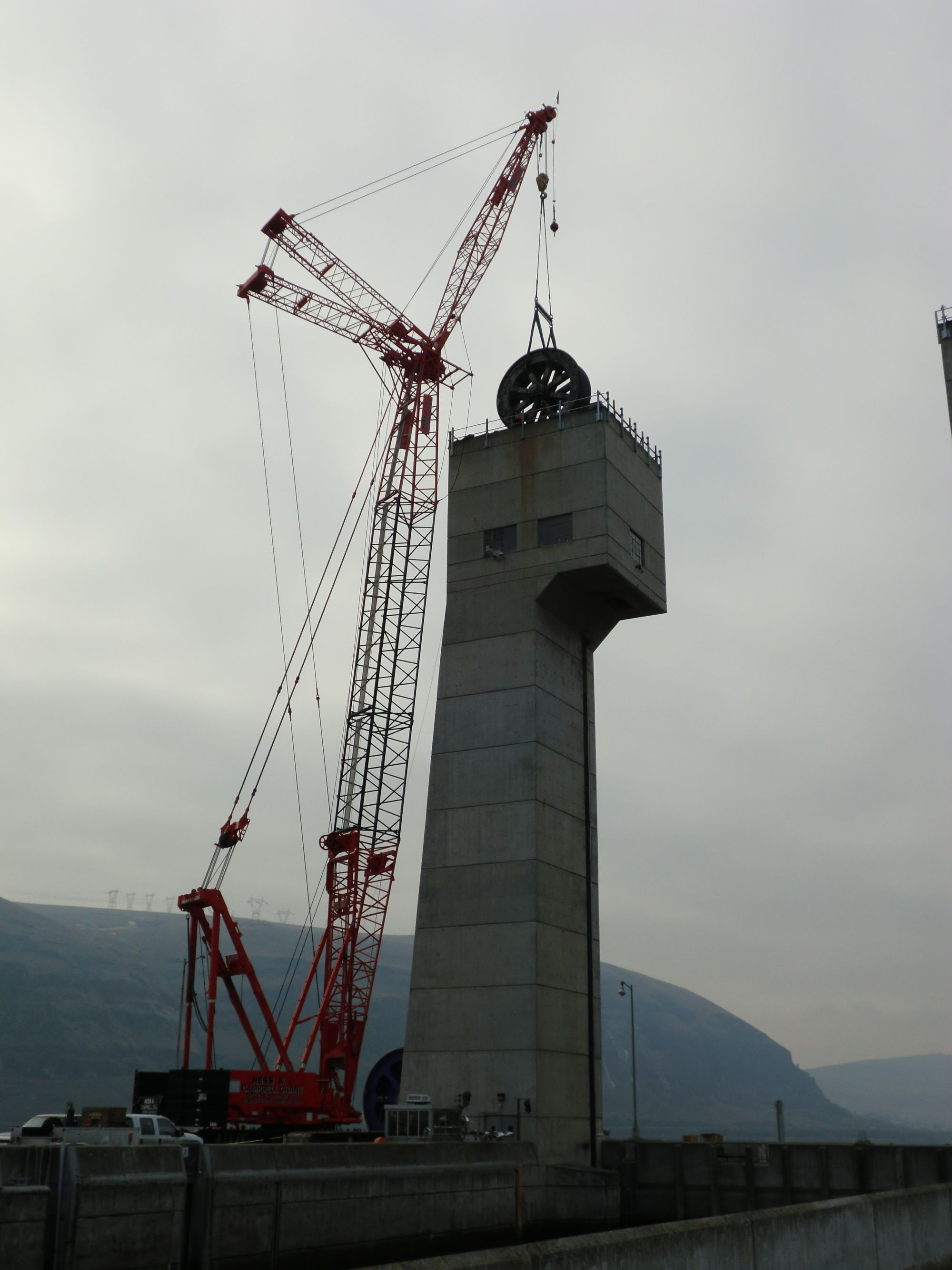

In addition to replacing the navigational lock gate, AAC’s contract included replacement of the full mechanical drive system. Work included jacking the two, 1 million pound counterweights, removal of the wire ropes and replacement of the friction sheaves with a 300 ton crane from the dam.

Project Highlights

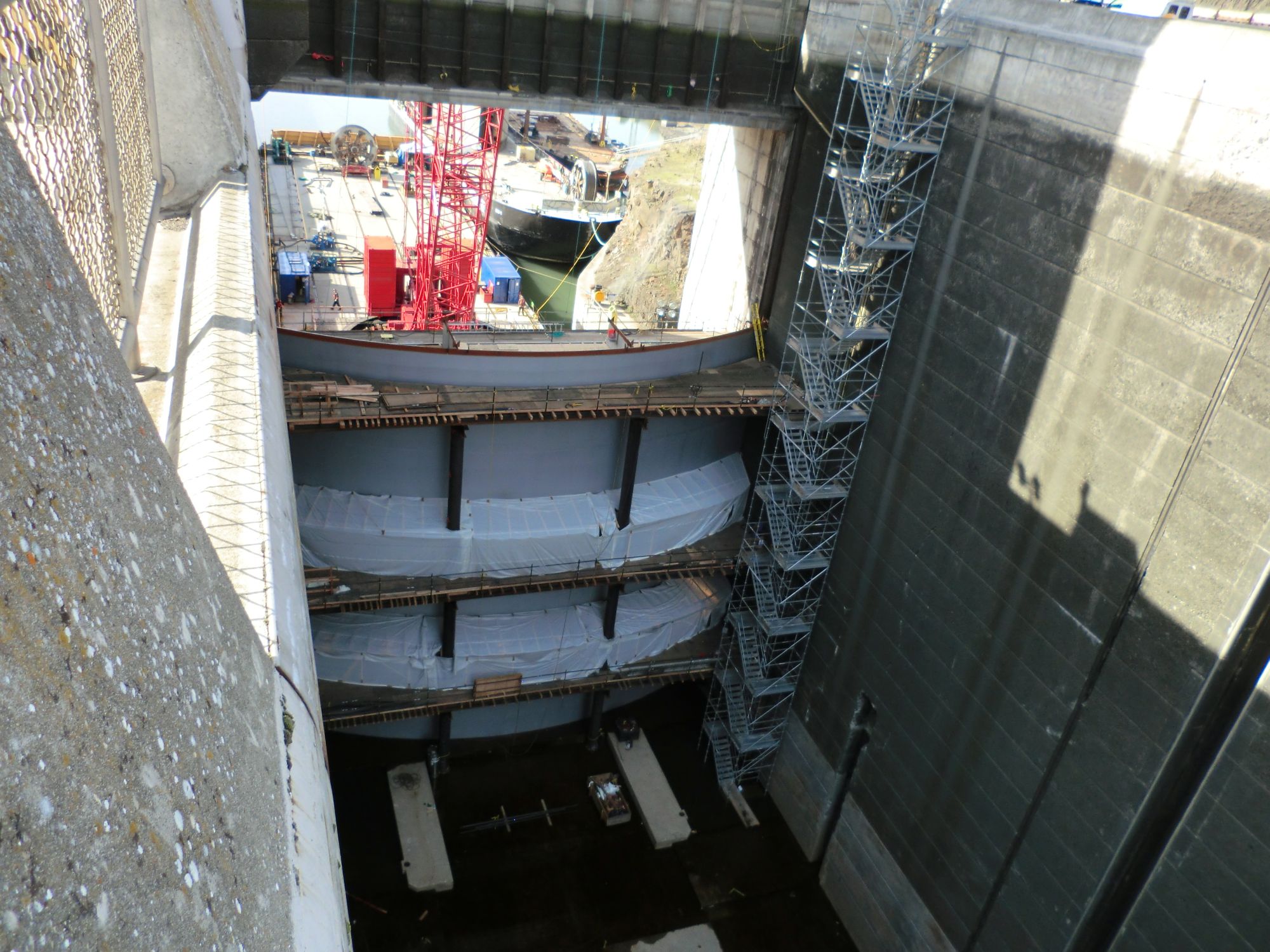

  • Replace 2.5 million pound structural steel gate.
  • Replace 2 each,18-foot diameter wire rope sheaves.
  • Jack 2 each, 1 million pound counterweights.

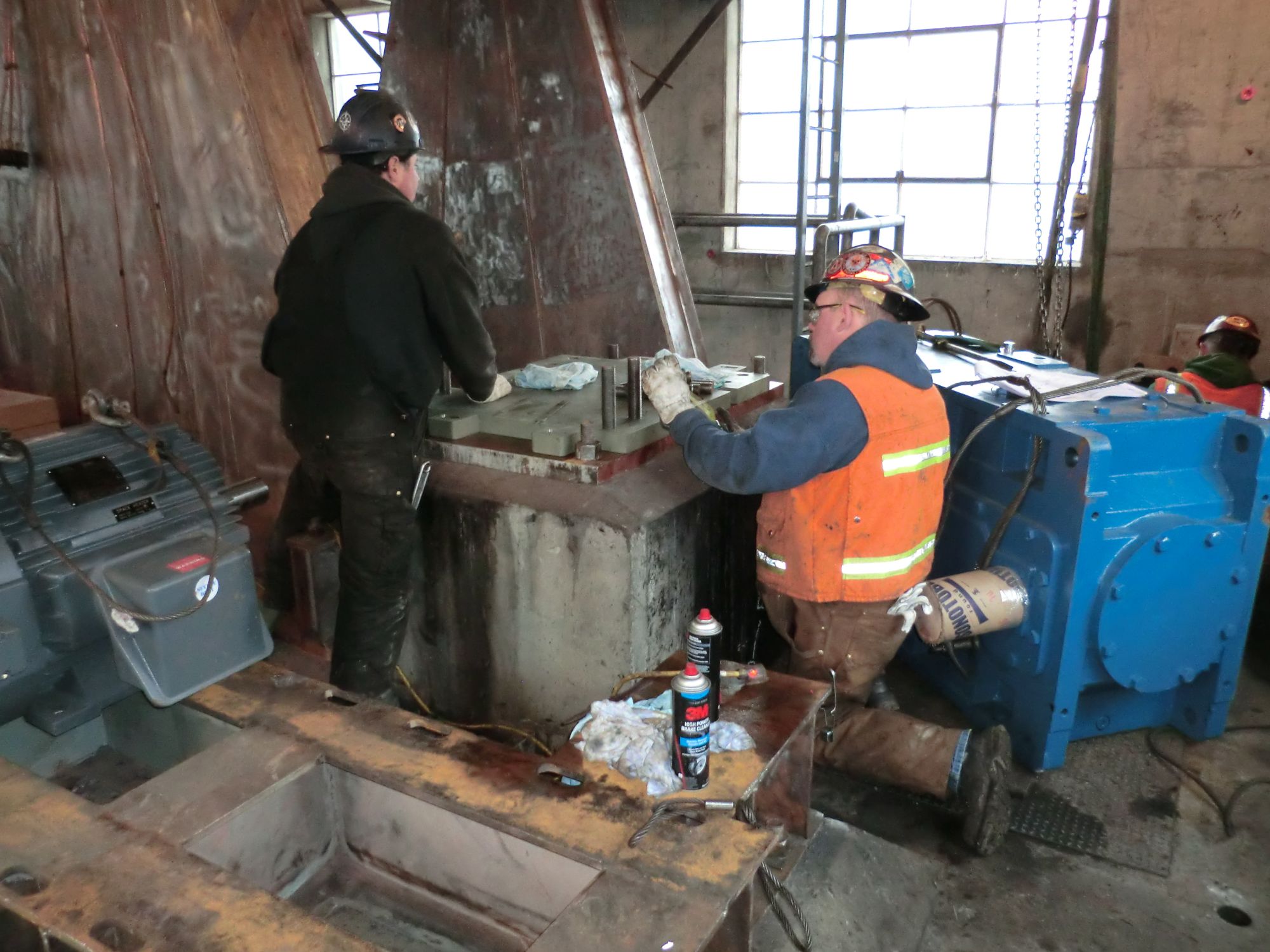

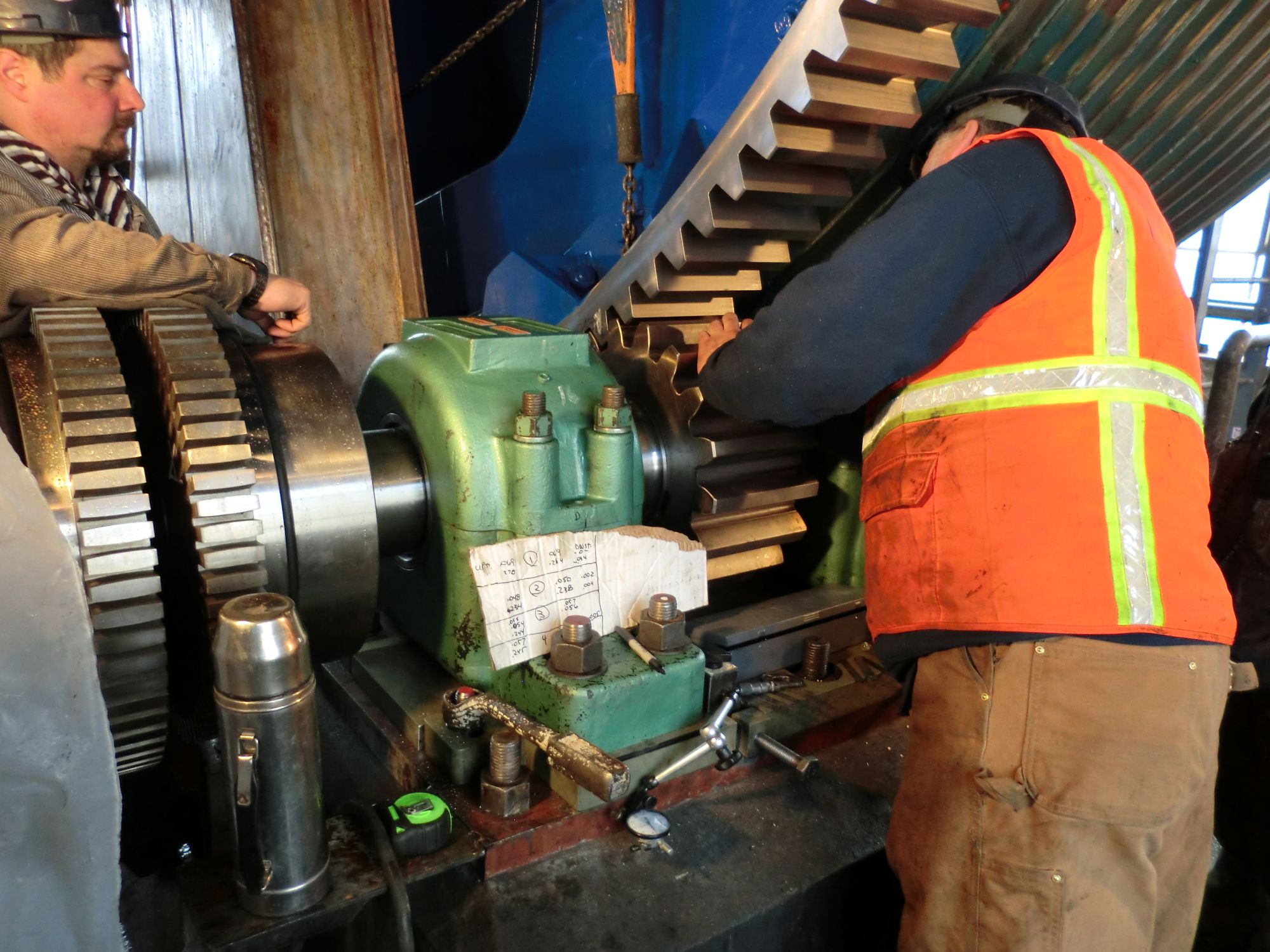

  • Complete replacement of mechanical friction sheave drive system.
  • All work performed within 14 week accelerated schedule.

Project Photos

Awards

  • 2012 Awards

    • Award
      AGC/ALLIANT 2012 Build America Award
      Open
      AGC/ALLIANT 2012 Build America Award
      AAC's John Day Lock and Dam Downstream Gate and Sheave Replacement project won the Alliant Build America Award for 2012. The Alliant Build America awards recognize AGC member companies who build the country's most impressive construction projects in transportation, utility infrastructure and federal and heavy divisions.

      View PDF
    • Award
      2012 Special Recognition Marvin M. Black Excellence in Partnering Award
      Open
      2012 Special Recognition Marvin M. Black Excellence in Partnering Award
      AAC's John Day Lock & Dam Gate & Sheave Replacement project was selected as a Special Recognition winner of the 2012 Marvin M. Black Excellence in Partnering Award. The judges selected the project for epitomizing the "true spirit of partnering". The Marvin M. Black award celebrates construction projects that successfully partner to achieve common goals, honor stake holders, and resolve conflicts.

    • Award
      AGC Washington Top Heavy/Industrial Grand Award
      Open
      AGC Washington Top Heavy/Industrial Grand Award
      AAC won the AGC Grand Award for Construction for the John Day Lock and Dam project with the US Army Corp of Engineers. The $18 million project was recognized for its significant impact, its unique challenges and the complexity of the work.

      View PDF
    • Award
      DJC 2012 Top Projects Award
      Open
      DJC 2012 Top Projects Award
      AAC's John Day Lock and Dam Gate and Sheave Replacement project won First Place in the Daily Journal of Commerce's 2012 Top Projects Award for Public works/infrastructure/transportation. The project succeeded despite turbulent weather conditions, demanding schedules and challenging project objectives.
