Schnitzer Steel Berth 1 Dock

Owner: Schnitzer Steel Industries, Inc.

Portland, OR
|
July 2005 - June 2006
« Previous ProjectNext Project »Back to Projects

Project Details

After completing removal of the existing concrete deck and structural steel under separate contract, Advanced American Construction, Inc. (AAC) constructed the new Berth 1 Dock for Schnitzer Steel Industries, Inc. at International Terminals in Portland, Oregon. The high load capacity dock, which supports the client’s scrap metal operations, is a cast-in-place concrete deck supported by structural steel framing on steel pipe piling. Next to the dock is a pile supported cast-in-place concrete relieving platform and a cast-in-place concrete approach slab on grade.

The 40,000 square foot project required: 5,500 cubic yards of structure excavation and 700 tons of rip rap slope protection; 7,500 lineal feet of 24 and 36-inch diameter open-ended steel pipe piles; 540 tons of structural steel framing; 4,500 cubic yards of cast-in-place reinforced concrete; 485 lineal feet of 171# crane rail system with stainless steel cable trough; 29 each, 255 kip tiebacks (for required seismic design loads); 100 tons of miscellaneous metal walkways and fabrications; and 1,000 lineal feet of under-dock utility and drainage piping.

Prior to contracting with the client to build the project, AAC value-engineered certain structural elements—including redesigning the steel pipe piling to a composite (steel pipe filled with reinforced concrete) pile section—resulting in over $400,000 in up-front cost savings to the client.

Project Highlights

  • 435-foot long by 48-foot wide dock; 21-foot wide relieving platform; and 24-foot wide dock approach slab.
  • 5,500 cubic yards of excavation and 700 tons of rip rap slope protection.
  • 7,500 lineal feet of 24- and 36-inch steel pipe piles.
  • 540 tons of structural steel.
  • 4,500 cubic yards of cast-in-place reinforced concrete.
  • 485 lineal feet of 171# crane rail system with cable trough.
  • 29 each, 255 kip tiebacks.
  • 1,000 lineal feet of utility and drainage piping.

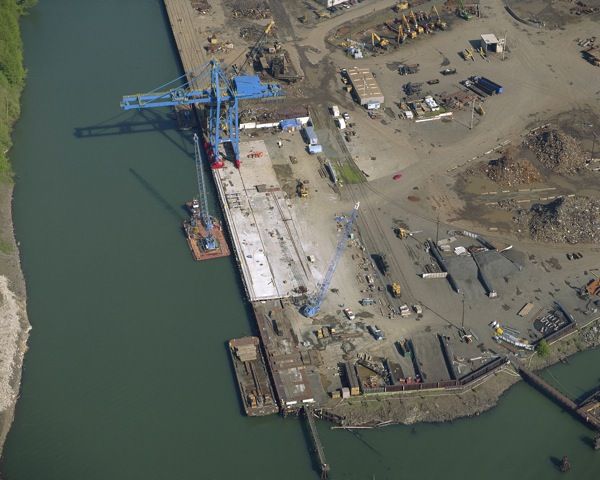

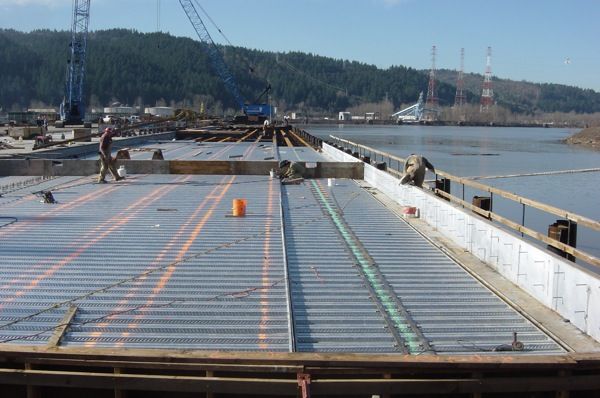

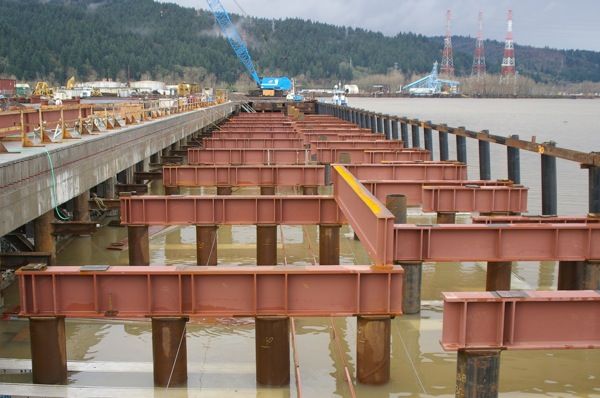

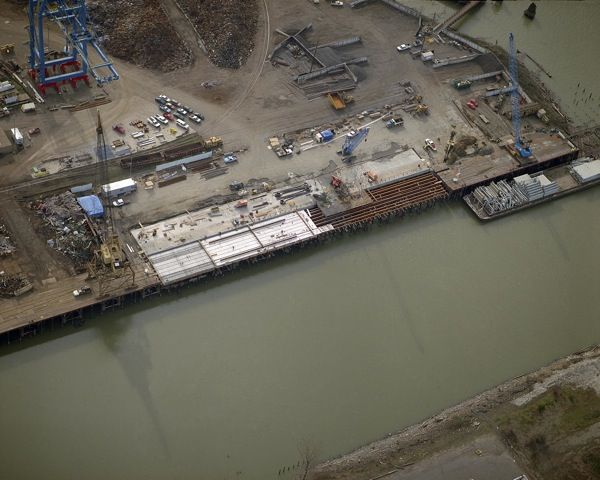

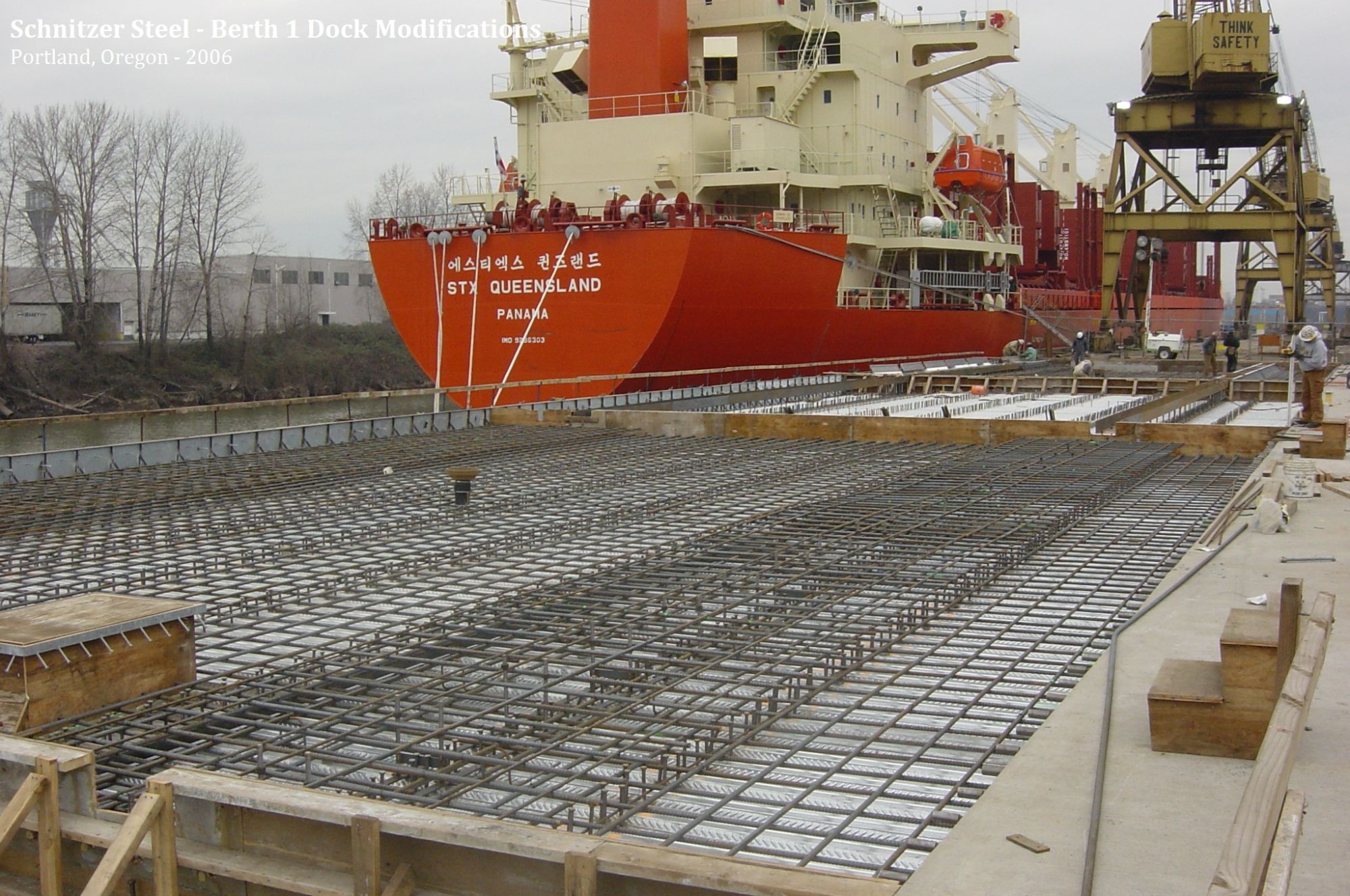

Project Photos
