Schnitzer Steel Berth 1 Dock
Project Details
Owner: Schnitzer Steel Industries, Inc.
Location: Portland, OR | July 2005 – June 2006

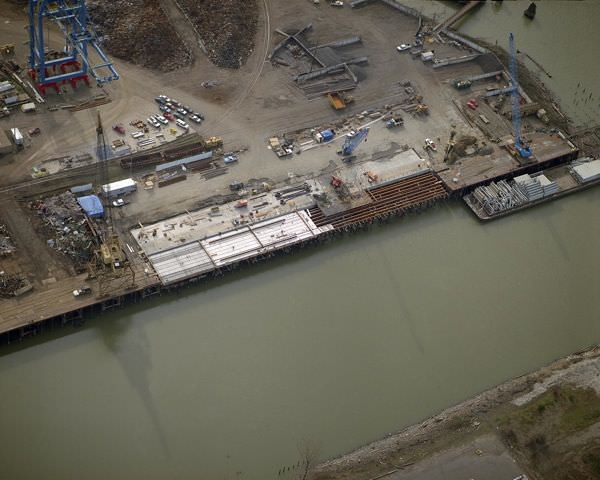

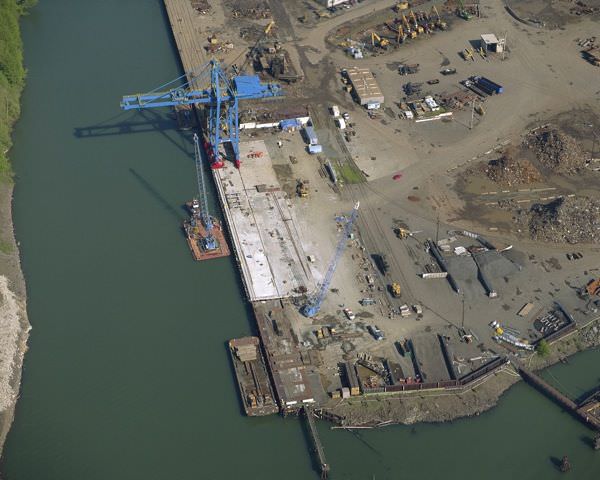

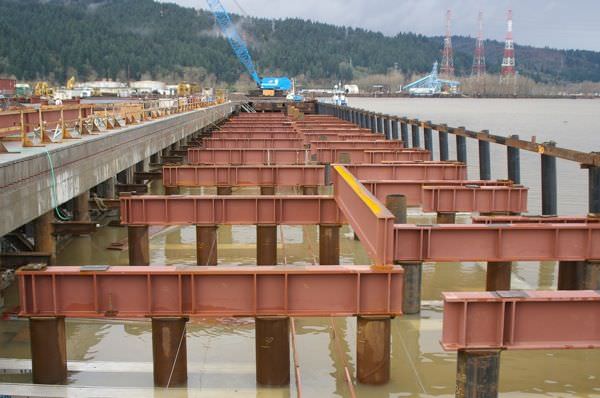

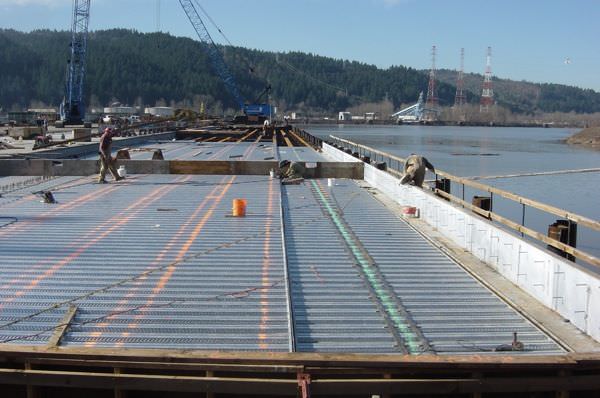

After completing removal of the existing concrete deck and structural steel under separate contract, Advanced American Construction, Inc. (AAC) constructed the new Berth 1 Dock for Schnitzer Steel Industries, Inc. at International Terminals in Portland, Oregon. The high load capacity dock, which supports the client’s scrap metal operations, is a cast-in-place concrete deck supported by structural steel framing on steel pipe piling. Next to the dock is a pile supported cast-in-place concrete relieving platform and a cast-in-place concrete approach slab on grade.

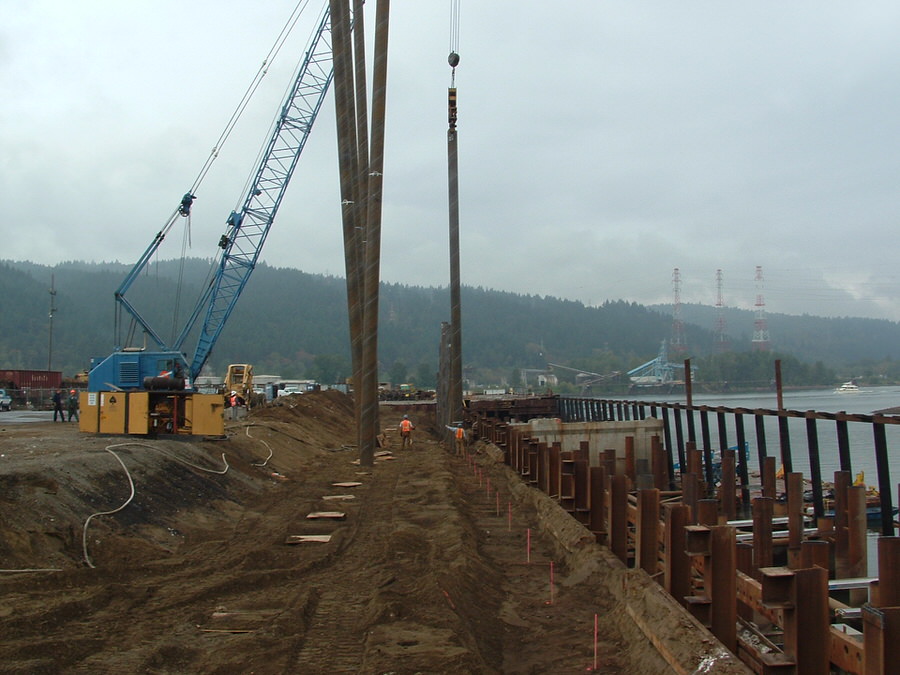

The 40,000 square foot project required: 5,500 cubic yards of structure excavation and 700 tons of rip rap slope protection; 7,500 lineal feet of 24 and 36-inch diameter open-ended steel pipe piles; 540 tons of structural steel framing; 4,500 cubic yards of cast-in-place reinforced concrete; 485 lineal feet of 171# crane rail system with stainless steel cable trough; 29 each, 255 kip tiebacks (for required seismic design loads); 100 tons of miscellaneous metal walkways and fabrications; and 1,000 lineal feet of under-dock utility and drainage piping.
Prior to contracting with the client to build the project, AAC value-engineered certain structural elements—including redesigning the steel pipe piling to a composite (steel pipe filled with reinforced concrete) pile section—resulting in over $400,000 in up-front cost savings to the client.
Project Highlights
- 435-foot long by 48-foot wide dock; 21-foot wide relieving platform; and 24-foot wide dock approach slab.
- 5,500 cubic yards of excavation and 700 tons of rip rap slope protection.
- 7,500 lineal feet of 24- and 36-inch steel pipe piles.
- 540 tons of structural steel.
- 4,500 cubic yards of cast-in-place reinforced concrete.
- 485 lineal feet of 171# crane rail system with cable trough.
- 29 each, 255 kip tiebacks.
- 1,000 lineal feet of utility and drainage piping.
