Lake Viva Naughton - Slide Gate Repairs

Prime Contractor: Advanced American Construction
Owner: Rocky Mountian Power (PacifiCorp)

Kemmerer, WY
May 2018 - June 2019
« Previous ProjectNext Project »Back to Projects

Project Details

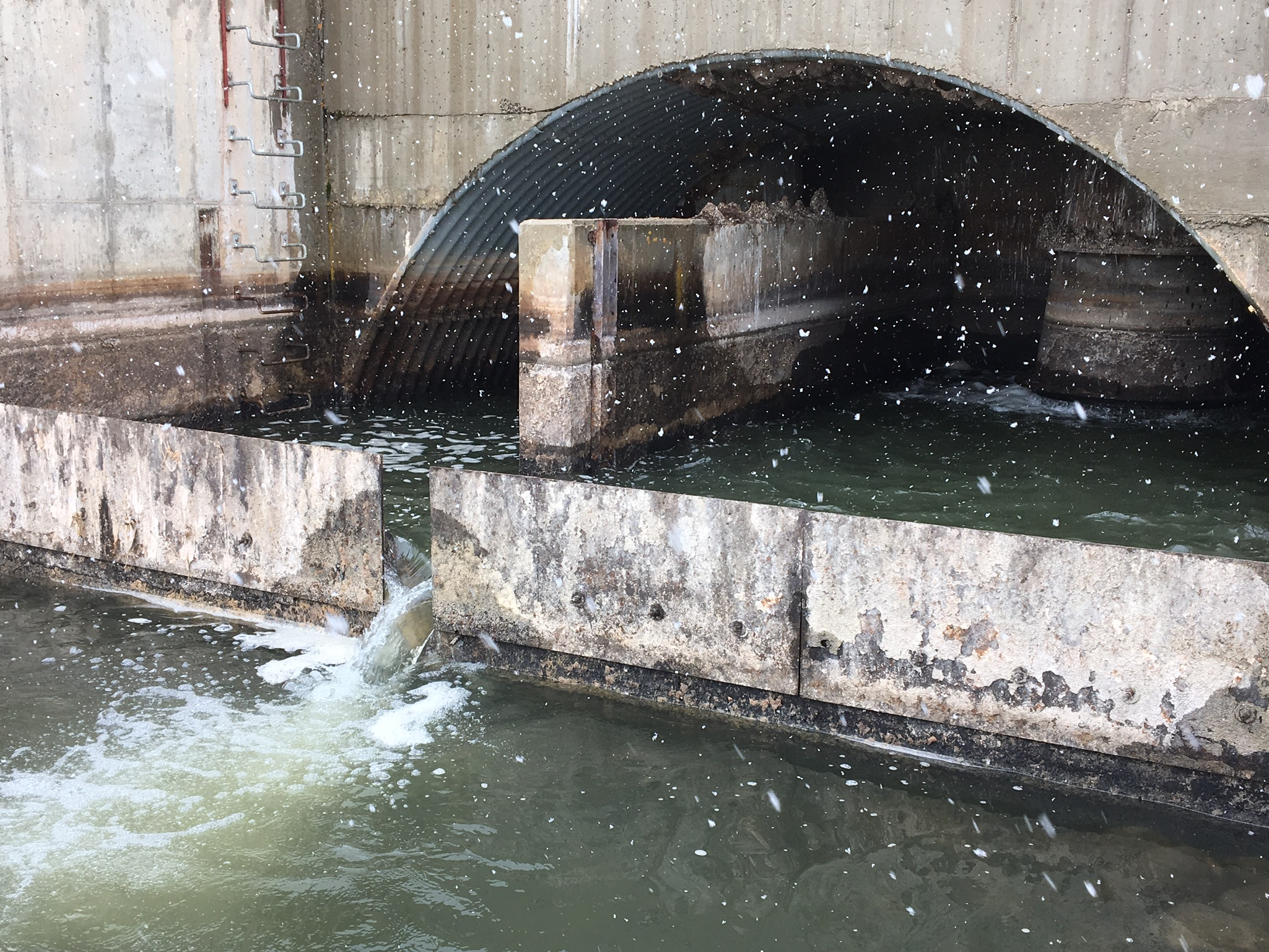

Advanced American Construction was contacted by Rocky Mountain Power (PacifiCorp) to assist with a slide gate that was stuck in the closed position.  They dam operators were anticipating a rise in water elevation in the dam forebay and wanted to avoid utilizing the overflow spillway.

In May of 2018, AAC mobilized a dive crew to Kemmerer, Wyoming to diagnose the slide gate issue and find a way to temporary get the gate open.  Once onsite, the crew battled challenging weather conditions, high altitude and limited access to get the gate in the open position.

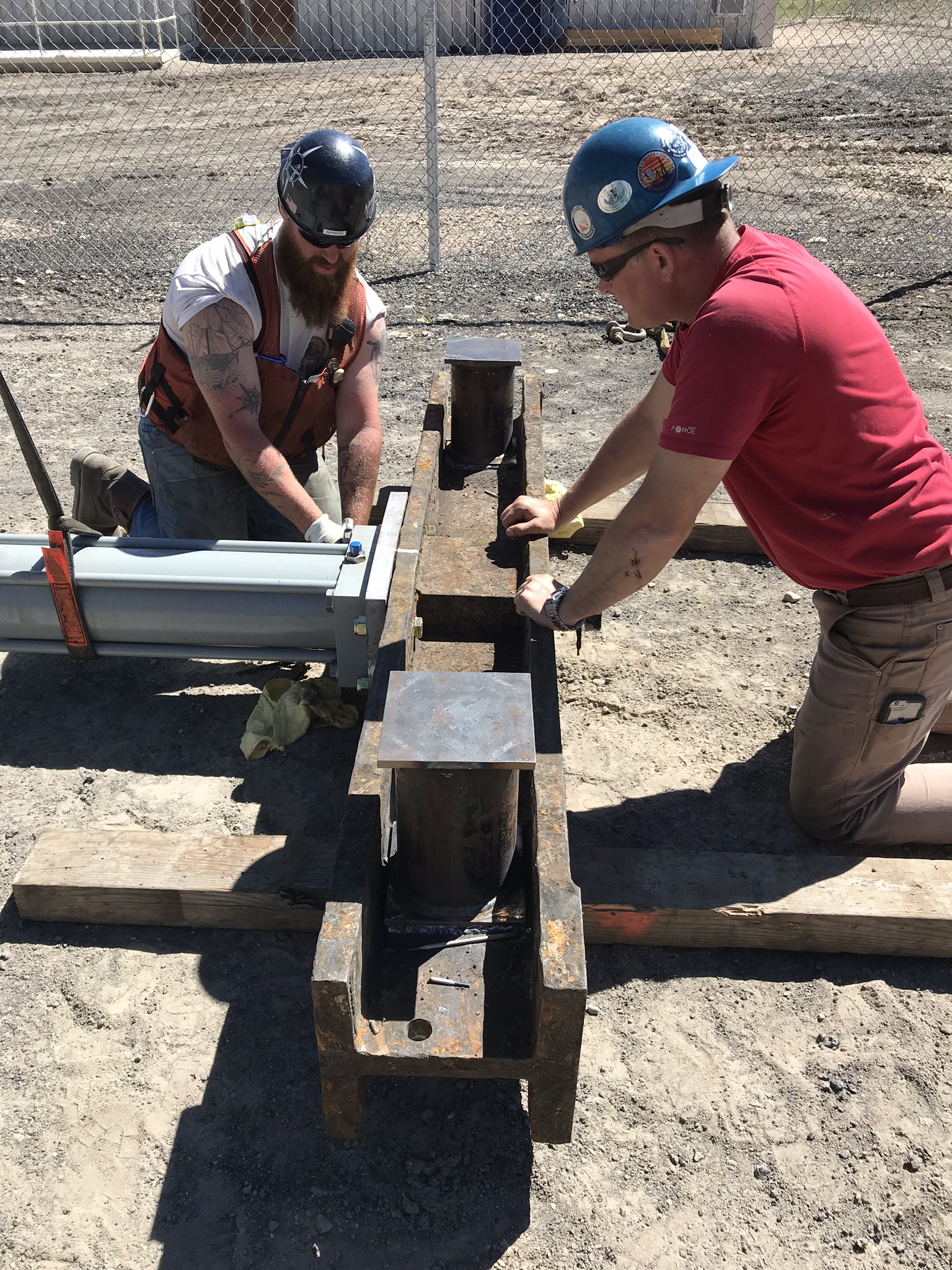

With the gate temporary placed in the open position, PacifiCorp commissioned AAC under a Design-Build contracting method to repair the slide gate and its mechanical operator.  AAC engaged an engineering firm and worked closely with Rocky Mountain Power to replace the aging stem-rod style gate operating assembly with a new hydraulically actuated cylinder, fabricated protection plates, hydraulic power unit and electronic position indicators.

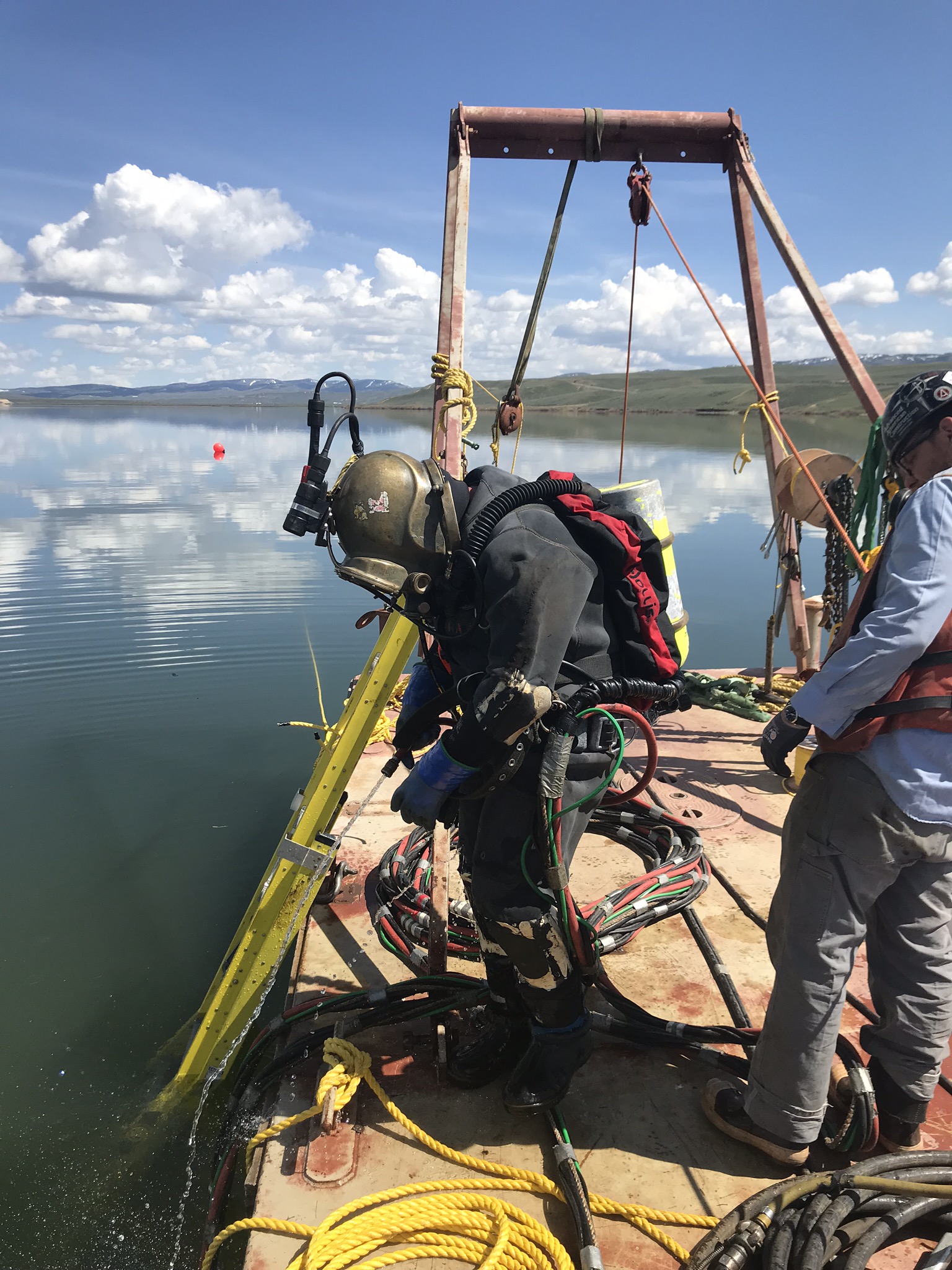

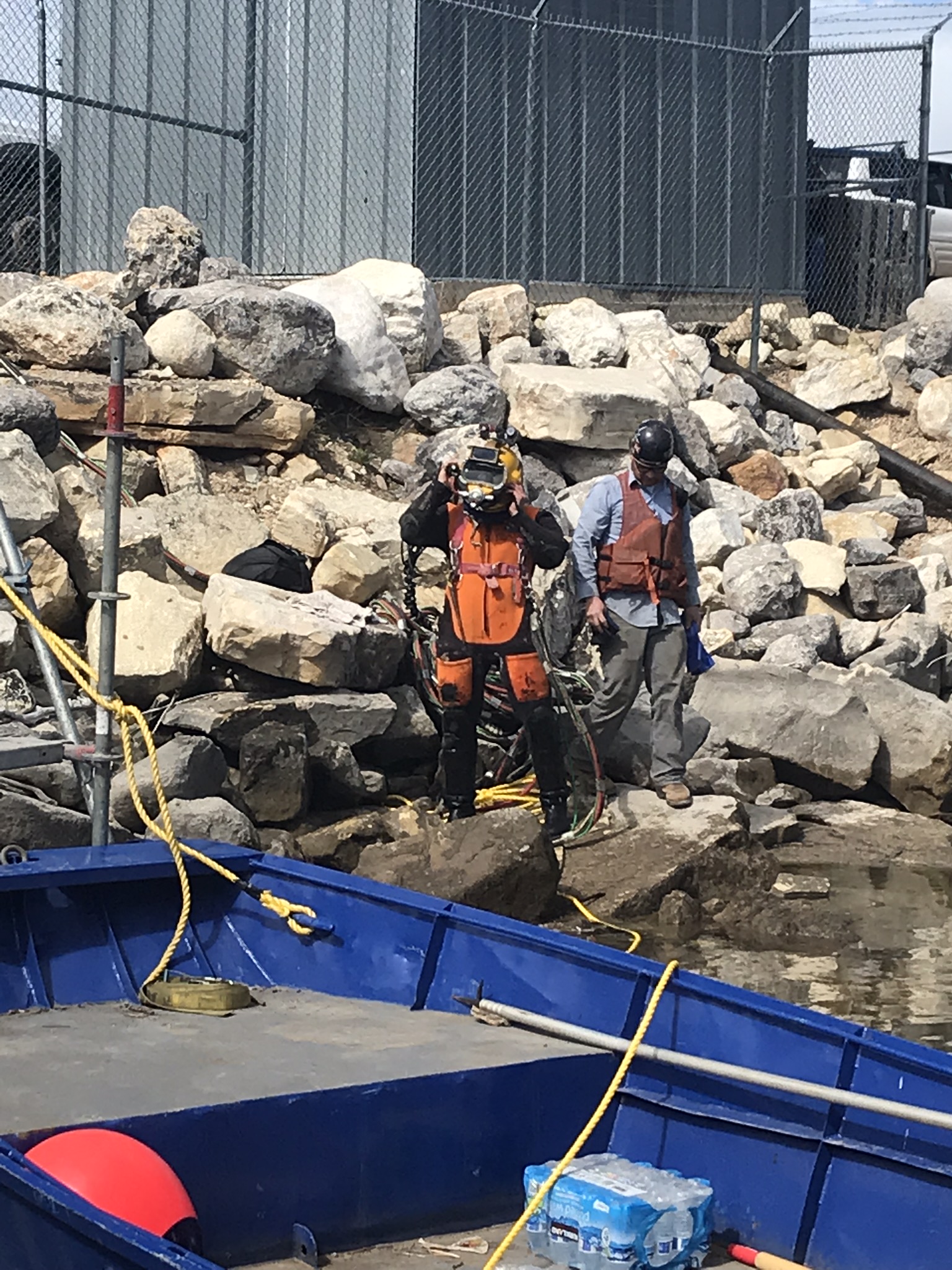

AAC re-mobilized to the site in June of 2019 to remove the aging and damaged components and install the new hydraulically operated system.  The team again faced challenging weather, high altitude (7,000+ feet) and limited access.  The dive crew performed weeks of highly orchestrated and technical dives in order to make the limited bottom time of each diver productive.  The new assembly was installed and tested by July of 2019.

Project Highlights

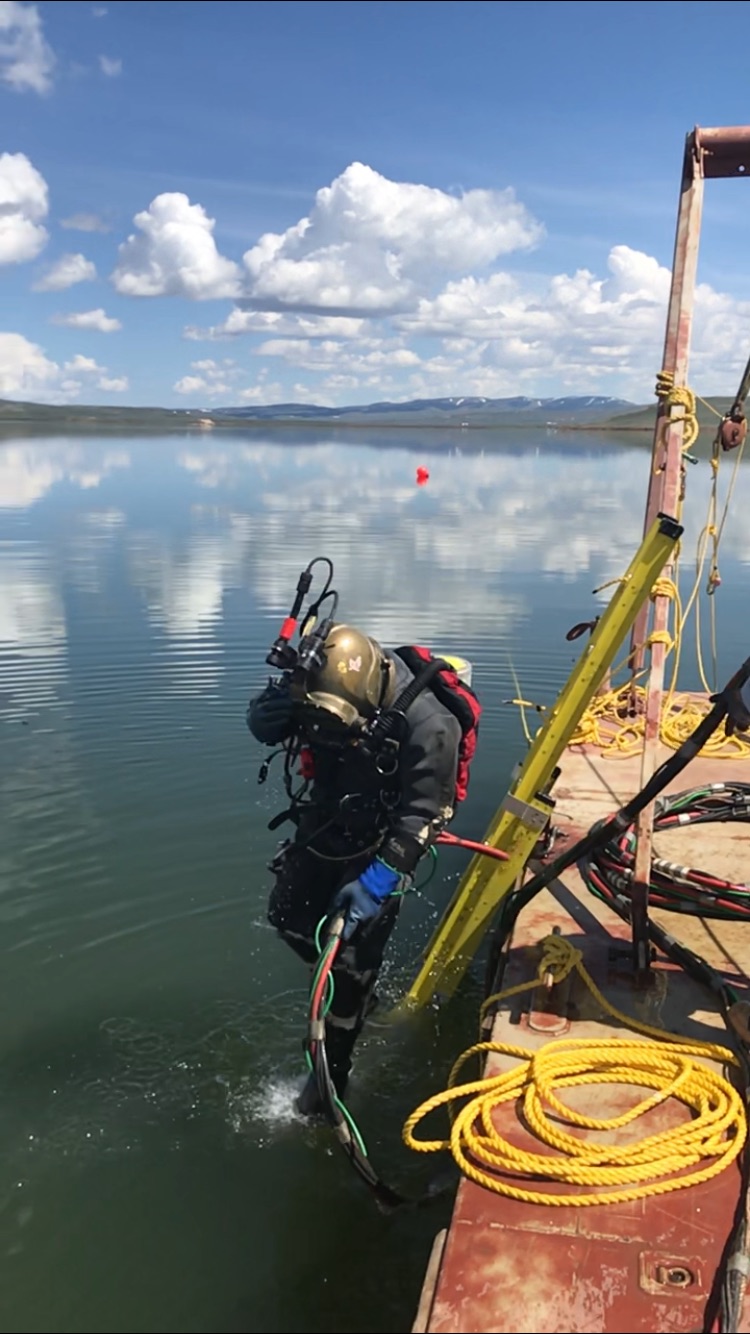

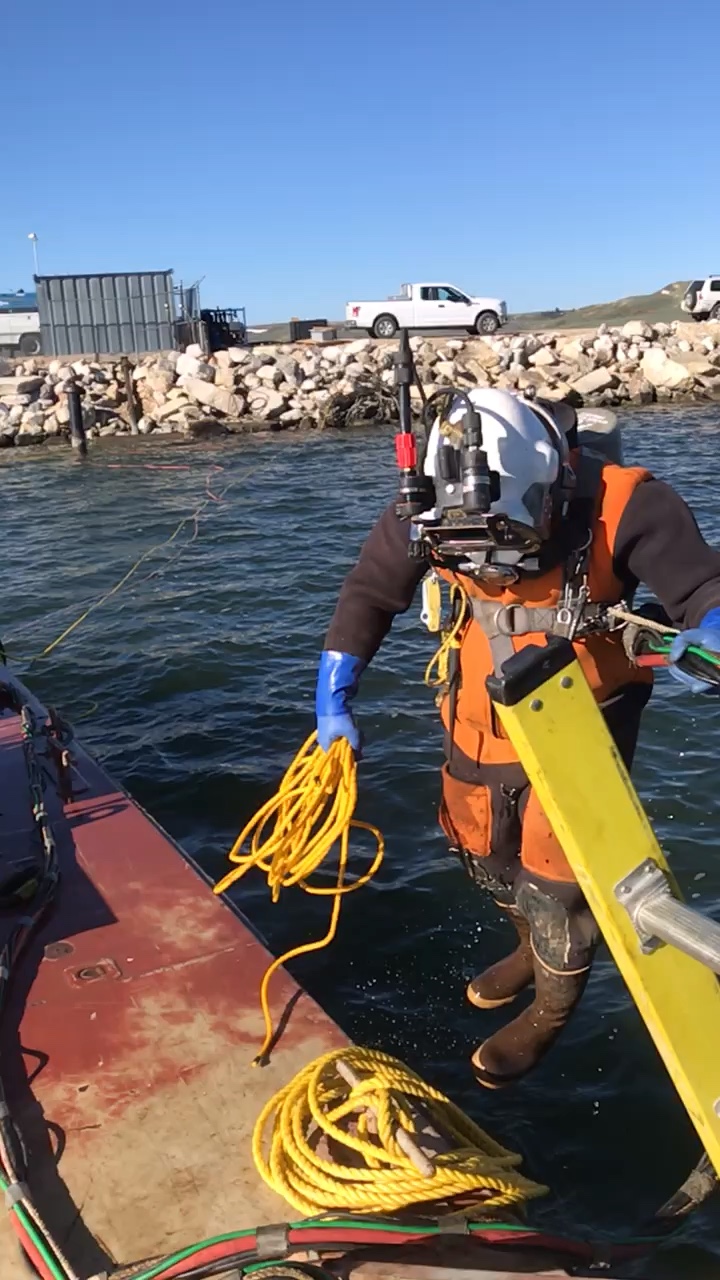

  • High altitude diving (7,000+ feet)

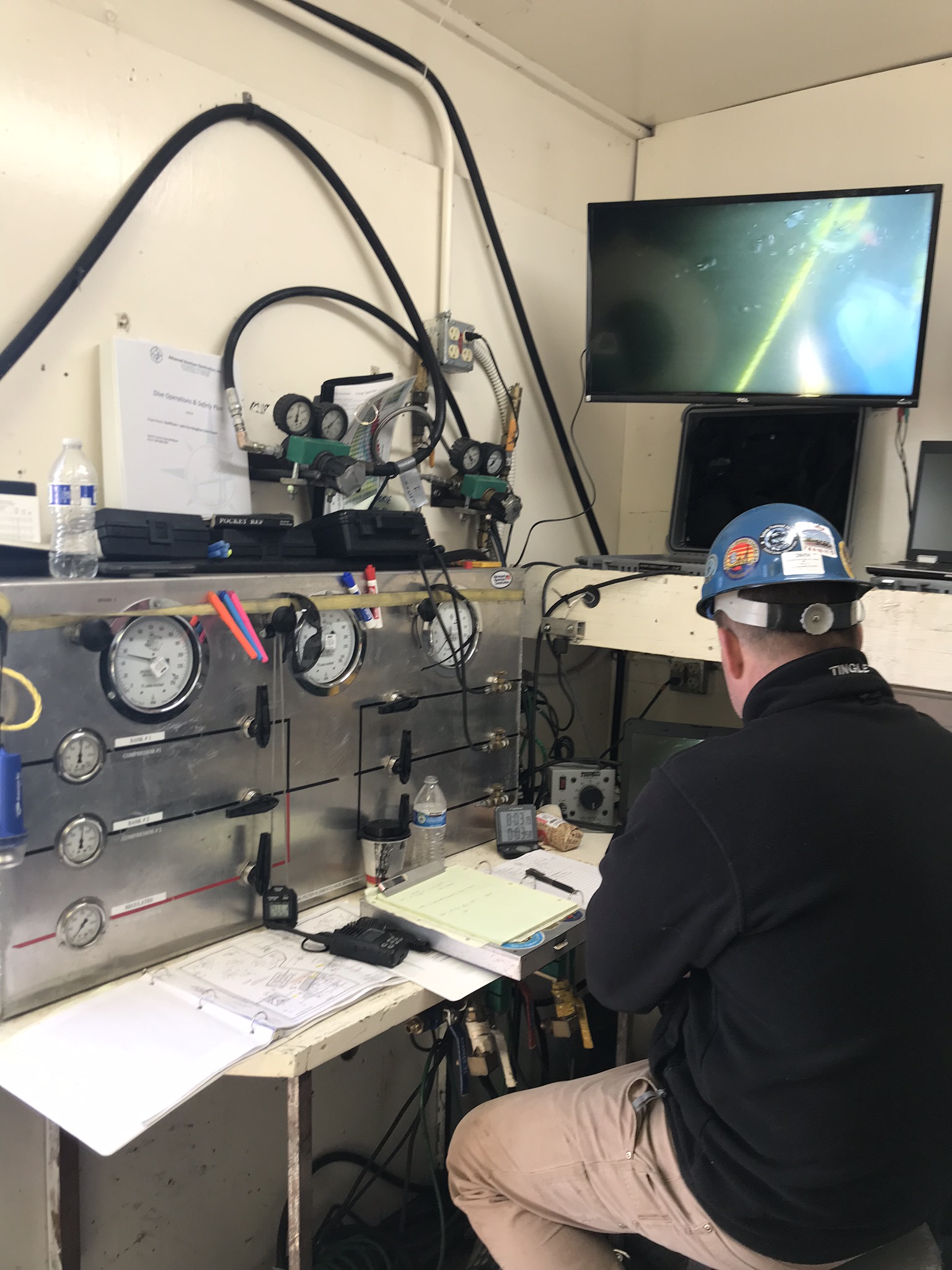

  • Nitrox diving

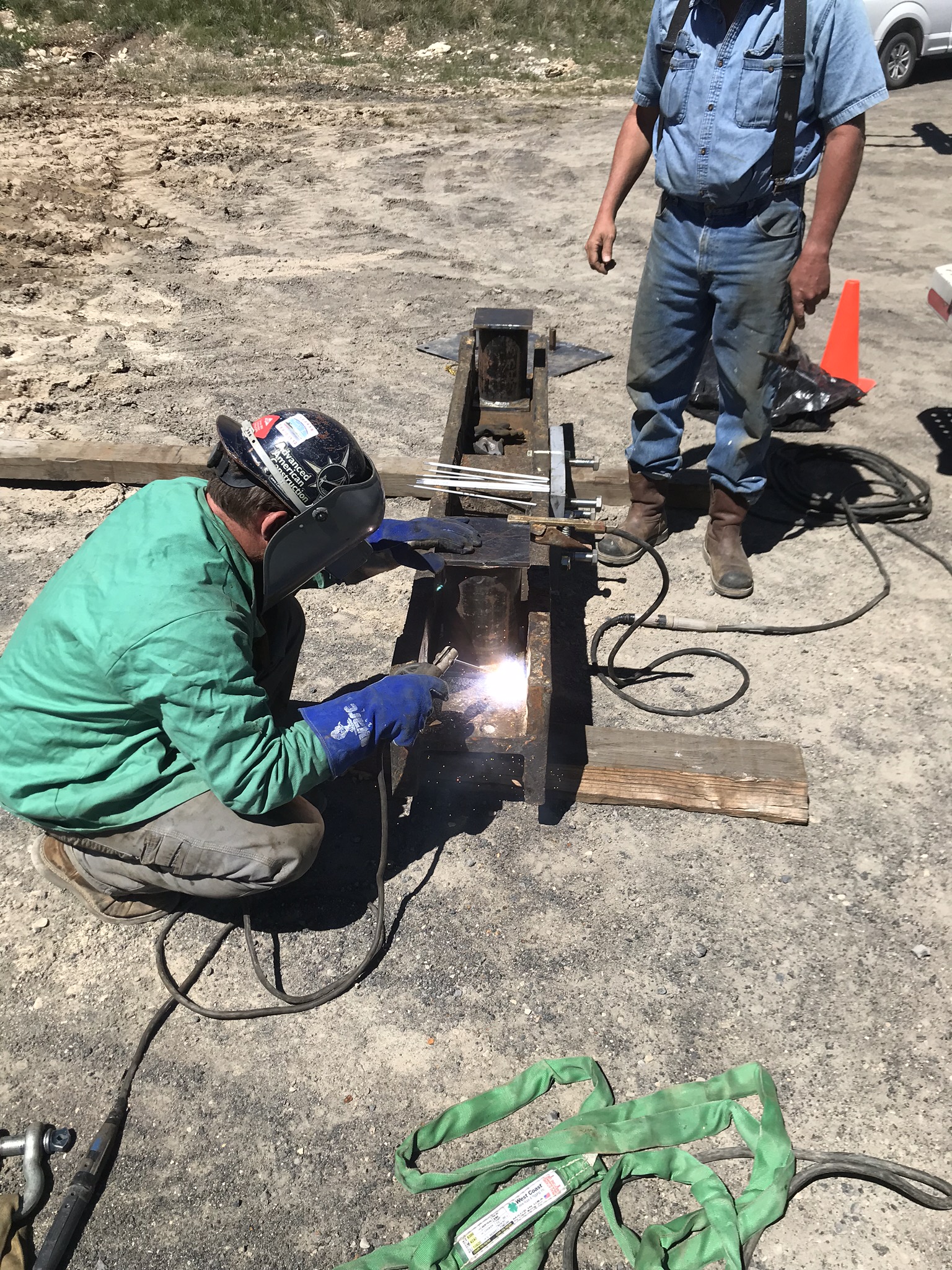

  • Underwater cutting and welding
  • Underwater structural bolting

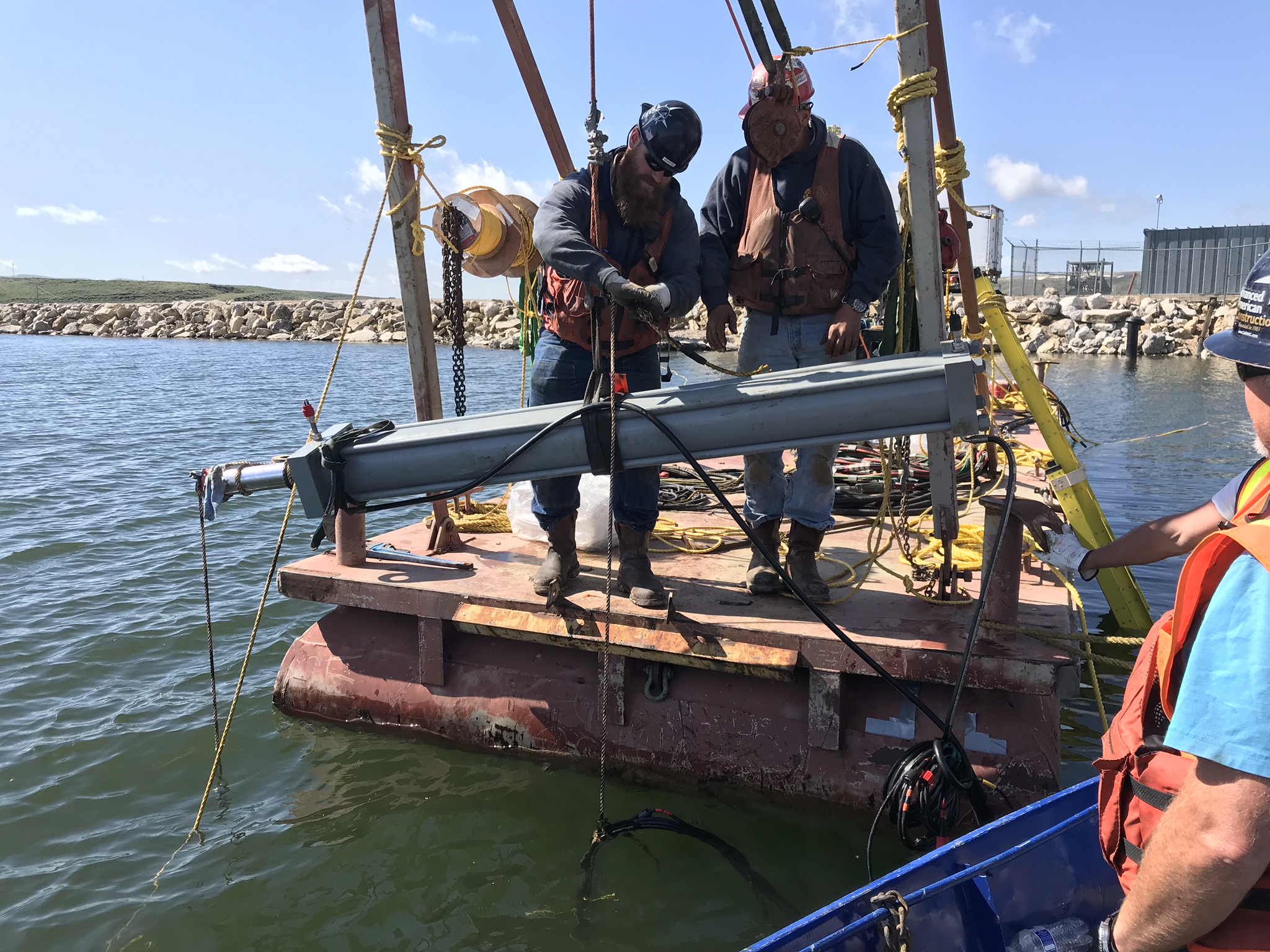

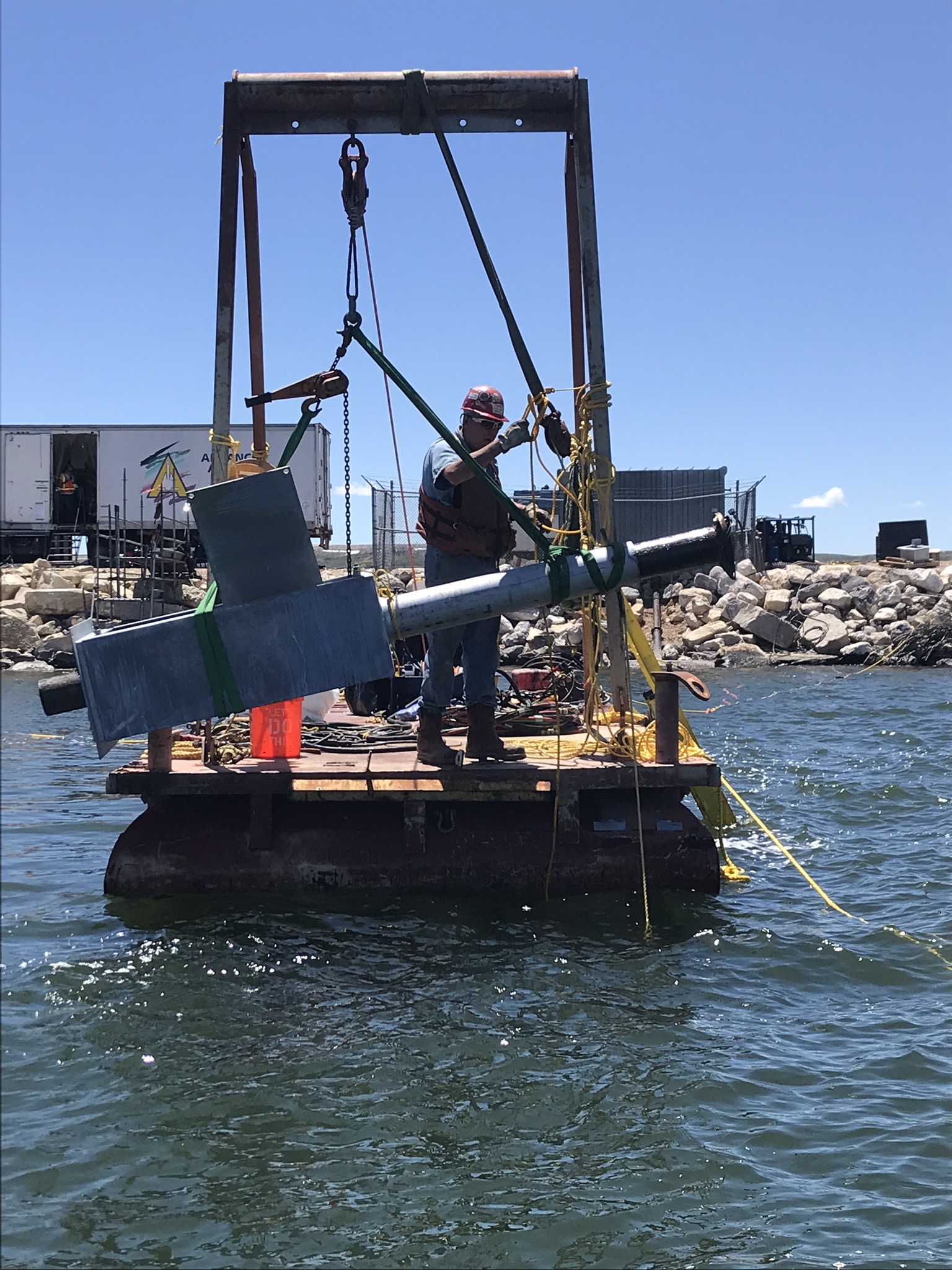

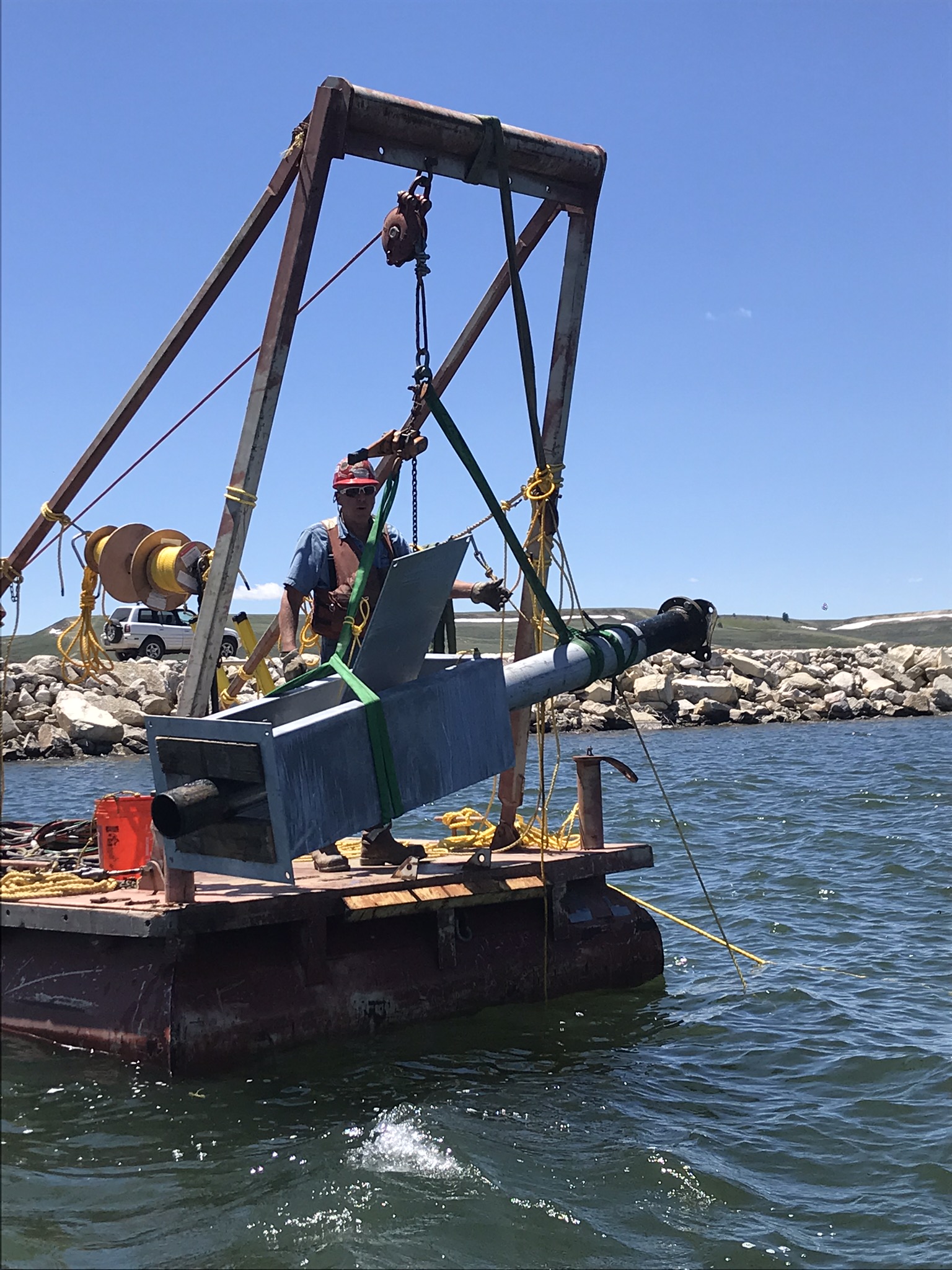

  • New underwater hydraulic cylinder, HPU and hydraulic controls
  • New electronic gate position indicator system
  • All dives were performed injury and incident free

Project Photos
